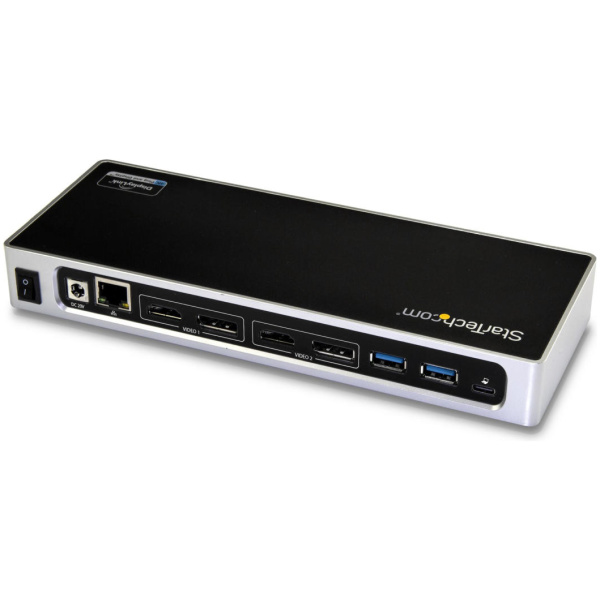

StarTech DK30A2DH USB-C & USB-A Dock Docking Station SILVER : Dual Monitor 4K 60Hz Dock DisplayPort + HDMI – 6x USB Type-A, GbE – USB 3.2 Gen 1 – Mac/Windows



We still have a selection of similar available alternatives, click to check them out

Extra 5% off with coupon:
Ends in:
About this product
SKU# DK30A2DH | Item# 364671
Warranty: 3 Year Warranty
Condition: New Factory Sealed
Packaging: Generic Box
Minimum order quantity (MOQ): 1
Images and specifications are for reference only
Usually ships within 7-10 business days
Special order item, not eligible for return/cancellation execpt for More info
SKU: DK30A2DH Category:

Additional information

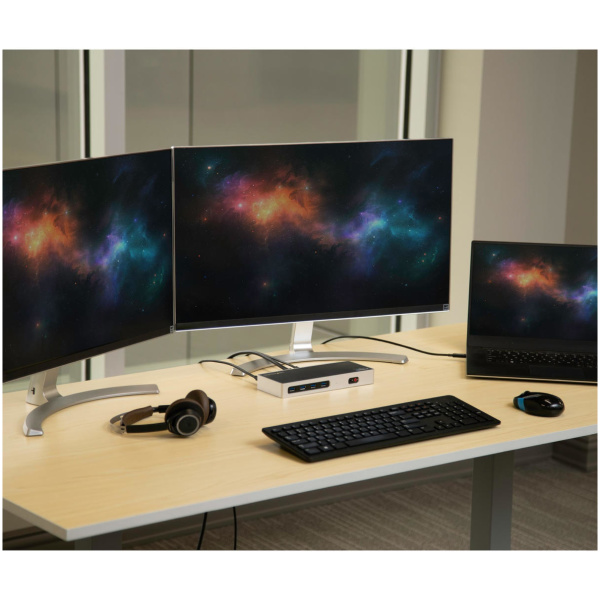

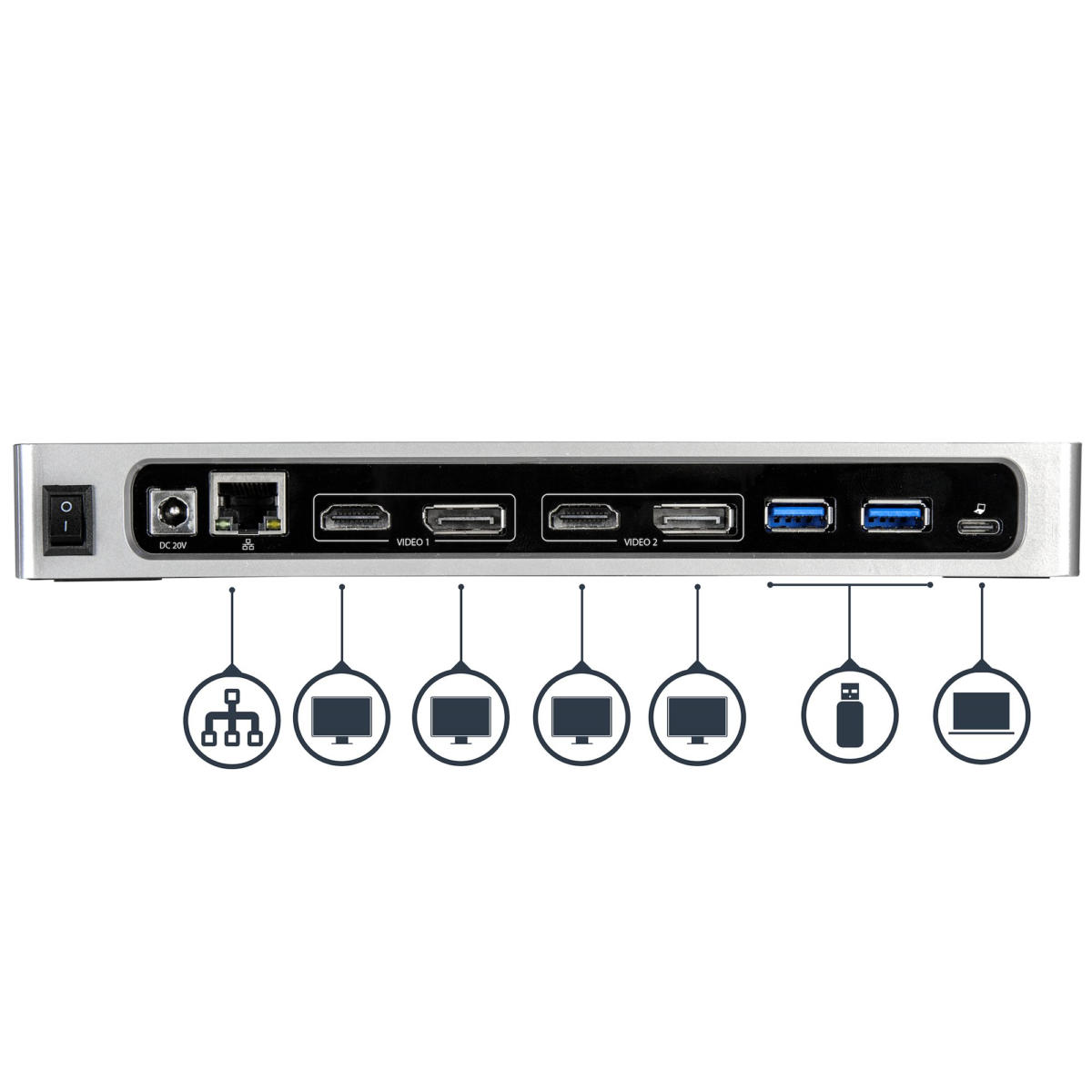

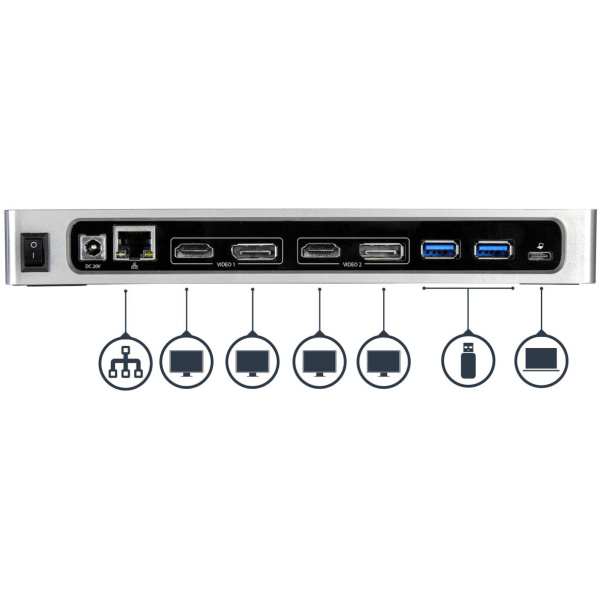

Laptop Docking Station | Mac & Windows® | DisplayPort & HDMI | 4K 60 HzThis dual-4K docking station offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.Enhance Productivity with Dual-4K 60Hz VideoIdeal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors. The laptop docking station works with DisplayLink® to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection.With the dual-4K dock, connect:• 2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz)• 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)• 1x 4K DisplayPort + 4K HDMI displays (up to 4096 x 2160p @ 60Hz)Connects to USB-C and USB-A LaptopsThe USB 3.0 docking station supports USB-C and USB-A enabled Mac and Windows laptops. This means you can connect newer USB-C or Thunderbolt™ 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops.All the Connections You NeedThis USB-A & USB-C dock lets you transform your Mac or Windows laptop into a full workstation with six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, and separate 3.5 mm audio and microphone ports for multiple audio connections, all using a single cable.DK30A2DH is backed by a 3-year warranty and free lifetime technical support.The Advantage

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
HDMI ports quantity2
Microphone inY
Headphone outputs1
DisplayPorts quantity2
Combo headphone/mic portN
Headphone connectivity3.5 mm
DC-in jackY
Ethernet LANY
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplexY
10G supportN
Product colorBlack, Silver
Card reader integratedN
Data transfer rate5 Gbit/s
Maximum digital resolution4096 x 2160 pixels
Number of displays supported2
On/off switchY
LED indicatorsPower
UASP supportY
Housing materialAluminum, Plastic
Brand compatibilityAny brand
CertificationCE, FCC, REACH
Power source typeAC
AC input voltage100 - 240 V
Input current1 A
Output voltage20 V
Output current2 A
Power consumption (typical)40 W
Power plug typeType N
Compatible power plug typesAU, EU, JP, UK, US
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac compatibilityY
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 90%
Sustainability certificatesRoHS

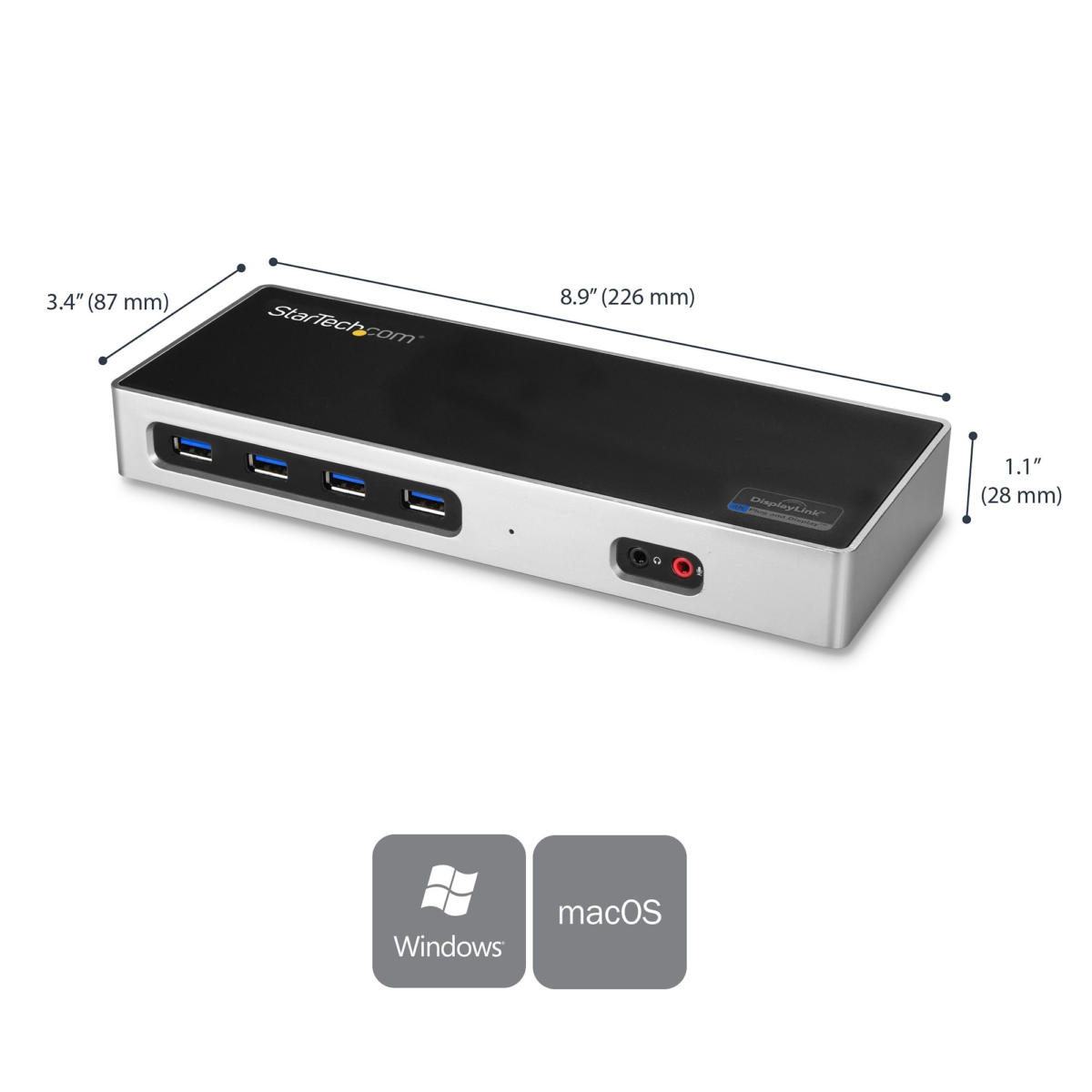

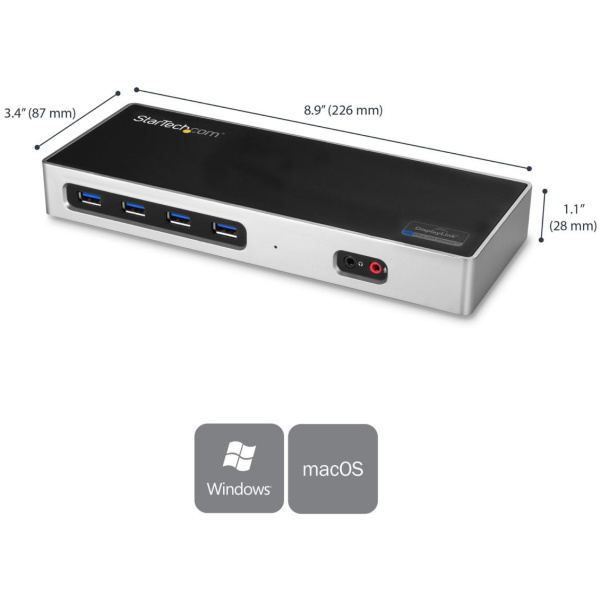

Width3.43" (87 mm)
Depth8.9" (226 mm)
Height1.1" (28 mm)
Weight10.6 oz (301 g)
Package width5.12" (130 mm)
Package depth12.5" (318 mm)
Package height2.05" (52 mm)
Package weight31.7 oz (900 g)
Cables includedUSB Type-A to USB Type-C, USB Type-C
AC adapter includedY
Quick start guideY
Quantity per master (outer) case10 pc(s)
Master (outer) case width12.8" (325 mm)
Master (outer) case length12.8" (325 mm)
Master (outer) case height12" (305 mm)
Harmonized System (HS) code84733020
Cable length5.98" (0.152 m)
ChipsetDisplayLink - DL-6950, VIA/VLI - VL813
Number of microphone inputs1
USB data transfer rates12,480,5000 Mbit/s
