Samsung 46″ UHF Video Wall Professional Display
$1125$1350
5 in stock
BLACKFRIDAY
Ends in:
Additional information

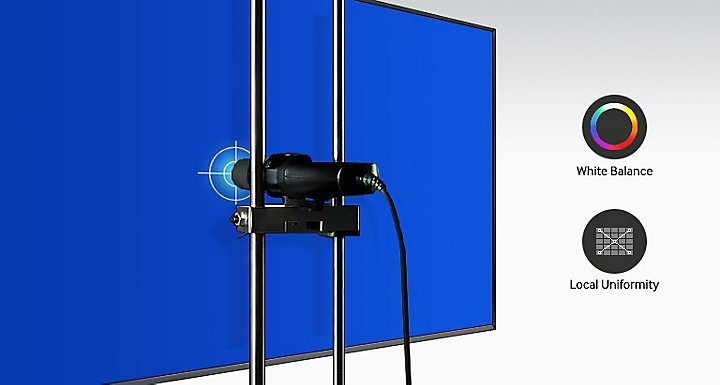

Ultimate pictures through advanced calibration
Factory calibration enables uniform brightness and colour expression across multiple displays out-of-the-box. Users can calibrate further with Samsung Colour Expert software, for optimal colour performance.

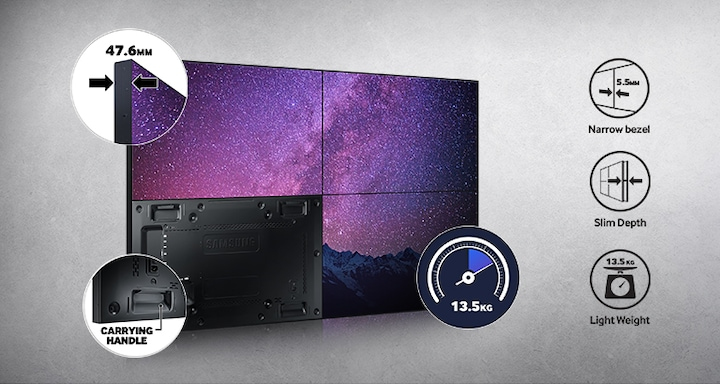

Narrow bezel and optimised panel design
With ultra-narrow bezels, the UDE-B Series video wall is designed for seamless viewing experiences that help focus attention on content. The reinforced anti-glare panel offers low reflectivity and helps prevent screen darkening, for brilliant, long-term performance.

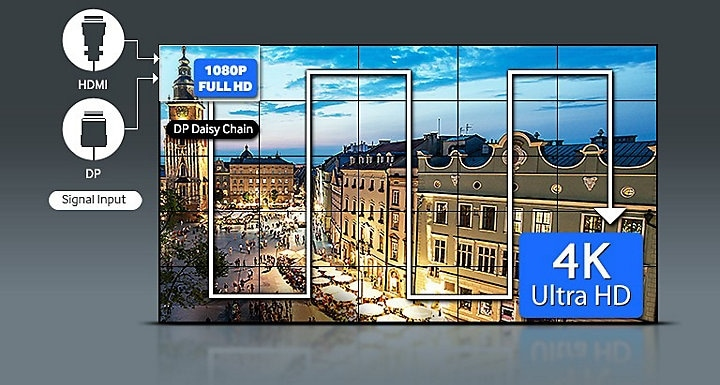

UHD performance without additional devices
Supporting DisplayPort (DP) 1.2 and HDMI with (High-Bandwidth Content Protection) daisy chains across 5x5 configurations, UHD TV and Blu-ray content can be displayed without the need for additional devices.

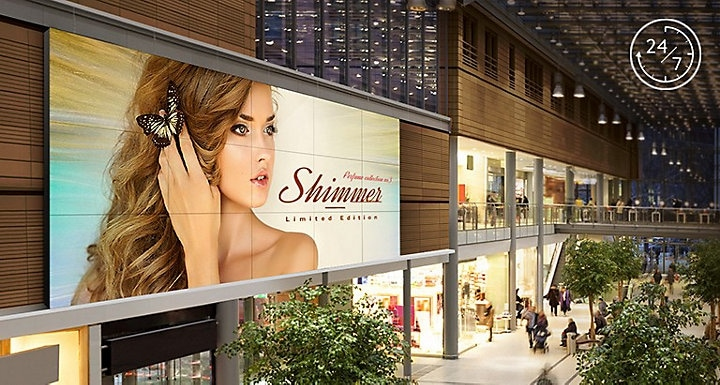

Display readability and durability
Engineered for continuous operation and offering 700 nits brightness, the UDE-B Series video walls can present vivid, highly visible images and legible messaging in environments such as shopping malls, office lobbies, and control rooms.

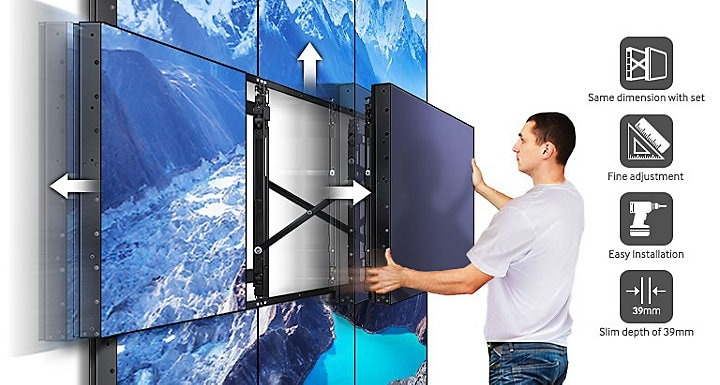

Slim, easily configurable wall mount
Easy installation and adjustment from slim, 39mm depth video wall mounts. Sized to the dimensions of the video wall, the UDE-B Series mounts help eliminate gap calculations during setup, and provide three-axis tuning for quick alignment of specific sections without the need to dismantle the entire video wall.
46″ Videowall Commercial Display UH46F5
Display diagonal | 46" |
Display technology | LED |
Display resolution | 1920 x 1080 pixels |
Display brightness | 700 cd/m² |
HD type | Full HD |
LED backlighting type | Direct-LED |
Response time | 8 ms |
Contrast ratio (typical) | 4000:1 |
Dynamic contrast ratio marketing name | Mega Contrast |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Display number of colors | 16.78 million colors |
Pixel pitch | 0.0209 x 0.0209" (0.53 x 0.53 mm) |
Active display area (W x H) | 40.1 x 22.5" (1018.1 x 572.7 mm) |
Horizontal scan range | 30 - 81 kHz |
Vertical scan range | 48 - 75 Hz |
Color gamut | 72% |
HDMI ports quantity | 2 |
DVI port | Yes |
DisplayPorts quantity | 2 |
USB port | Yes |
Ethernet LAN | No |
VGA (D-Sub) input ports | 1 |
USB ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
Audio (L/R) in | 1 |
Audio (L/R) out | 1 |
RS-232 interface | Yes |
Remote (IR) input | 1 |
Remote (IR) output | 1 |
Product design | Digital signage flat panel |
Product color | Black |
VESA mounting | Yes |
Panel mounting interface | 400 x 400 mm |
Multi-display supported | Yes |
Power consumption (typical) | 98 W |
Power consumption (sleep) | 0.5 W |
Power consumption (max) | 132 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Heat dissipation | 1536.8 BTU/h |
Width | 40.3" (1023.8 mm) |
Depth | 1.89" (47.9 mm) |
Height | 22.8" (578.4 mm) |
Weight | 29.1 lbs (13.2 kg) |
Package width | 46.1" (1171 mm) |
Package depth | 10.9" (277 mm) |
Package height | 28.9" (734 mm) |
Package weight | 29.1 lbs (13.2 kg) |
Handheld remote control | Yes |
Batteries included | Yes |
Cables included | AC, DisplayPort |
Warranty card | Yes |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 80% |
Certification | FCC (USA) FCC Part 15, Subpart B class A, CE (Europe) EN55022, EN55024, VCCI (Japan) V-3 (CISPR22), KCC (Korea) : KN22, KN24, BSMI (Taiwan) : CNS13438 (CISPR22), C-Tick (Australia) : AS/NZS3548.(CISPR22), CCC(China) : GB9254-2008, GB17625.1-2012 UL (USA) : UL 60950-1, CSA (Canada) : CSA C22.2 No. 60950-1, TUV (Germany) : EN60950-1, NEMKO (Norway) : EN60950-1, KC (Korea) : K60950-1, CCC (China) : GB4943.1-2011, PSB (Singapore) : C60950-1, GOST (Russia) : IEC60950-1, EN55022, SIQ (Slovenia) : IEC60950-1, EN55022, PCBC (Poland) : IEC60590-1, EN55022, NOM (Mexico) : NOM-019-SCFI-1993, IRAM (Argentina) : IEC60950-1, SASO (Saudi Arabia) : IEC60950-1 |
Bezel width (L/T, R/B) | 3.4. 2 |
