Phanteks PH-EC500ATG_DBK01 Steel ATX Mid Tower Case w/ Side Window BLACK
$188
SOLD OUT
We still have a selection of similar available alternatives, click to check them out
Additional information

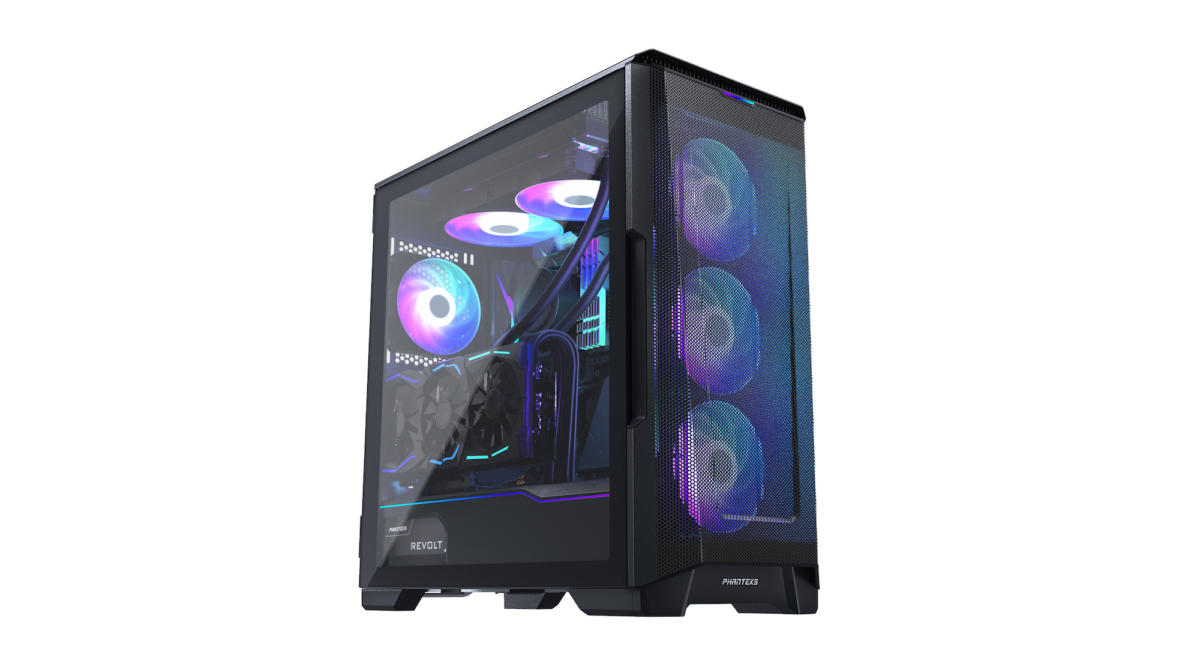

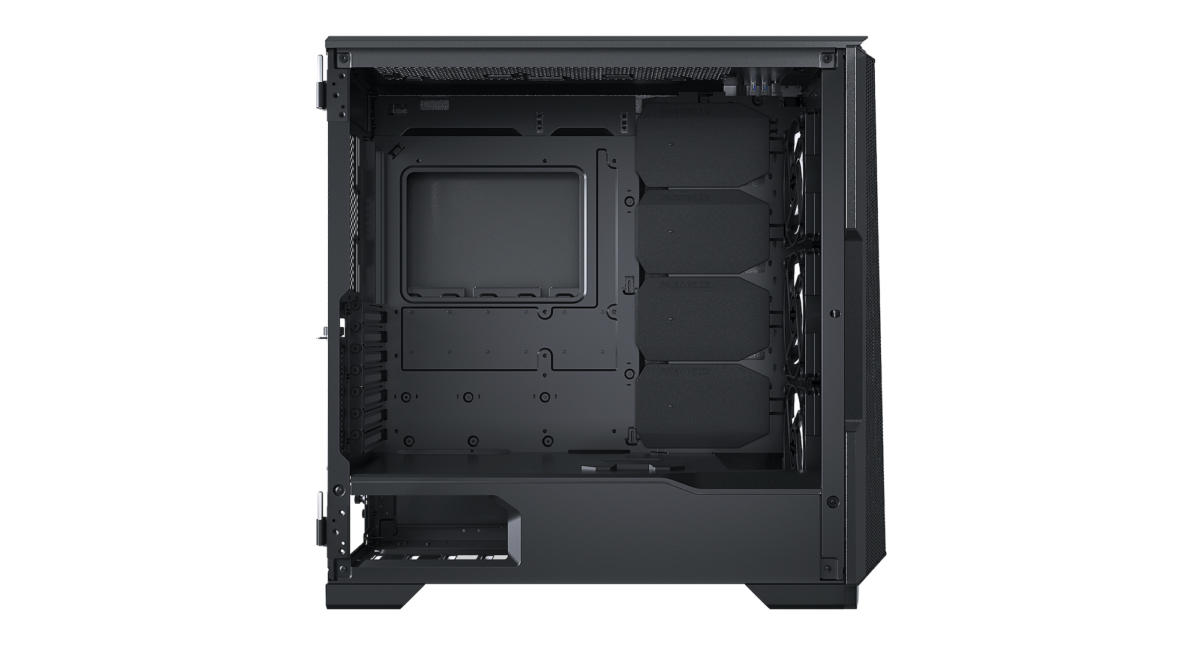

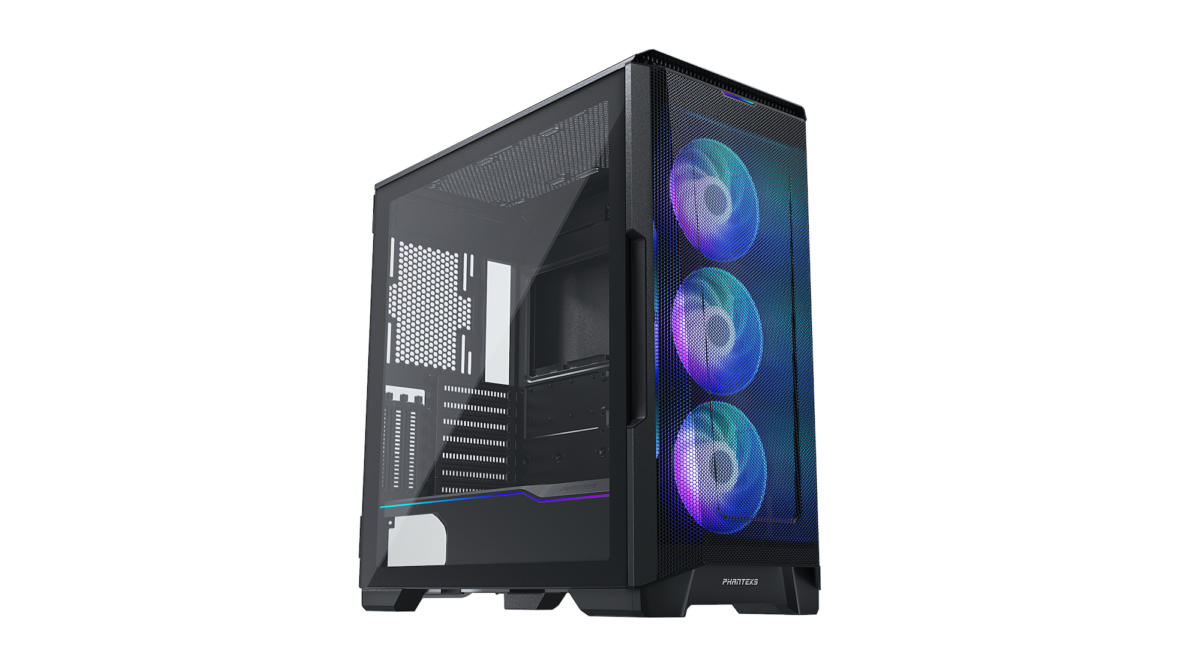

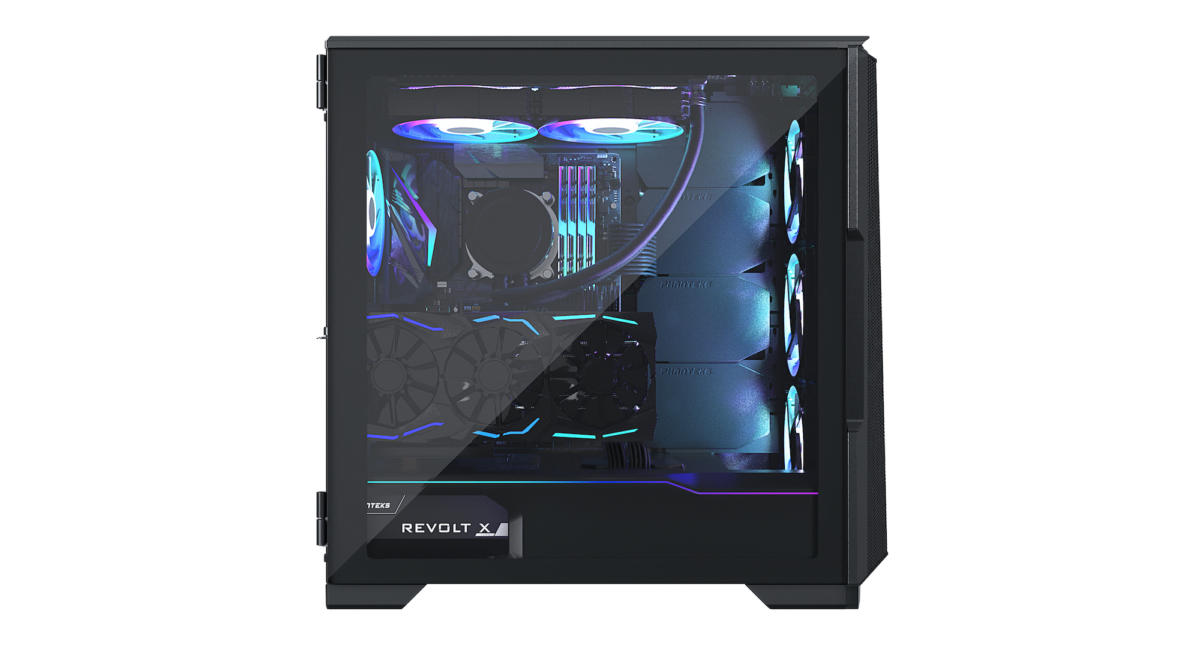

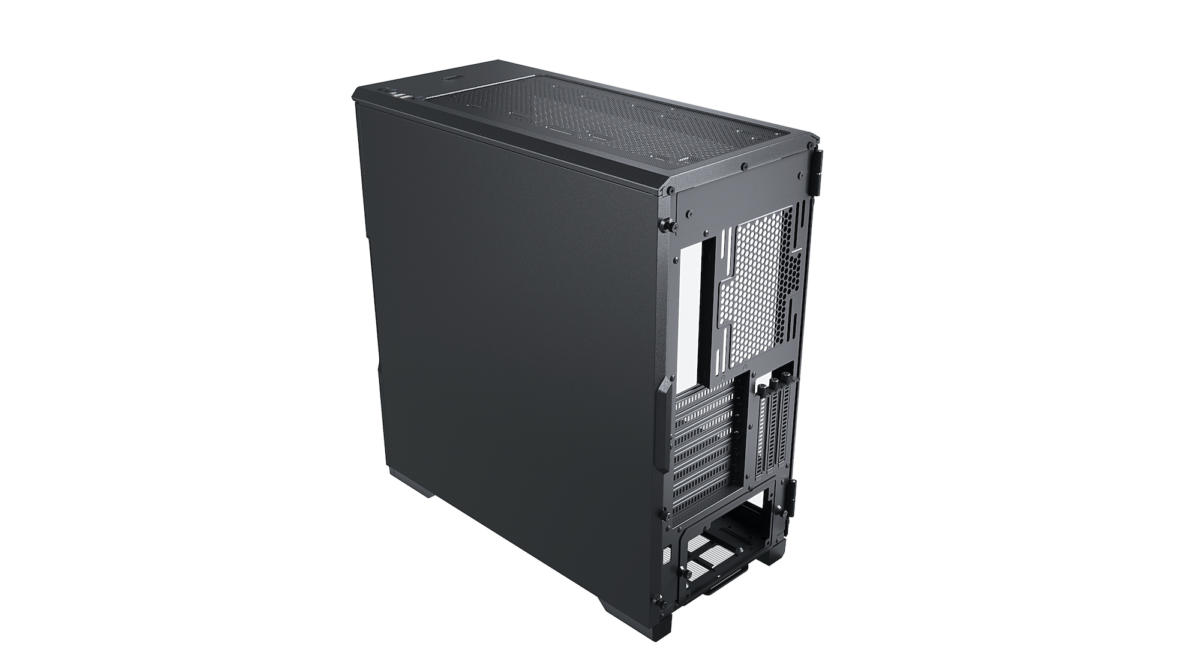

The Eclipse P500A is a premium mid-tower case that combines high airflow performance with style. It features the 1 mm Ultra-fine Performance mesh front panel for optimal airflow with effective dust filtration. The P500A offers a versatile interior with high-end features such as extensive water-cooling support (up to 420 mm radiators), extensive storage possibilities (can be upgraded up to 10 HDD’s / 13 SSD’s), software-free D-RGB lighting solution, hinged tempered glass side panel, and dual-system support. With a rich feature set and flexible interior, it’s the perfect chassis for people demanding more than the standard mainstream with options for future expansion. The P500A delivers quality and performance with exceptional value and high-end capabilities.
| Form factor | Midi Tower |
| Type | PC |
| Product color | Gray |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 10 |
| Material | Steel |
| Number of 2.5" bays | 3 |
| Number of expansion slots | 10 |
| Side window | Y |
| Suitable for | Gaming |
| Illumination | Y |
| Illumination color | Blue, Green, Red |
| Illumination location | Front |
| Tempered glass panel(s) | Y |
| Anti-dust filter | Y |
| Cable management | Y |
| Transport wheels | N |
| On/off button | Y |
| RGB control button | Y |
| Maximum CPU cooler height | 7.48" (19 cm) |
| Maximum graphics card length | 17.1" (43.5 cm) |
| Maximum PSU length | 9.84" (25 cm) |
| Power supply included | N |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio input | Y |
| Audio output | Y |

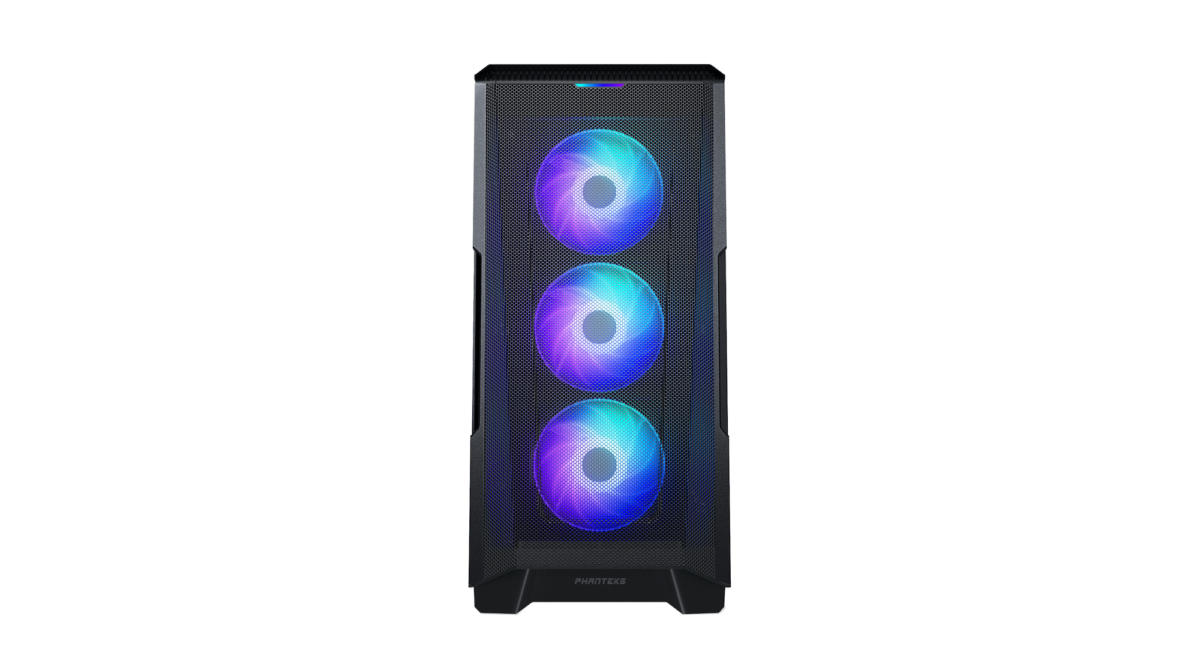

| Front fans installed | 3x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Front radiator fan sizes supported | 360,420 mm |
| Rear radiator fan sizes supported | 120,140 mm |
| Top radiator fan sizes supported | 360,420 mm |
| Supported HDD sizes | 3.5" |
| SSD form factor | 2.5" |
| Number of HDDs supported | 10 |
| Width | 9.45" (240 mm) |
| Depth | 19.9" (505 mm) |
| Height | 20.1" (510 mm) |
| Weight | 17.6 lbs (8 kg) |
| LED controller | Y |
| Package width | 12.8" (325 mm) |
| Package depth | 24" (610 mm) |
| Package height | 24" (610 mm) |
| Package weight | 22 lbs (10 kg) |
