EVGA 220-P3-1200-X1-NEW 80 PLUS PLATINUM Certified 1200W Fully Modular ATX12V Power Supply
$236
SOLD OUT
We still have a selection of similar available alternatives, click to check them out
Additional information
A New Generation of Platinum Power
EVGA SuperNOVA power supplies are well known for their extreme efficiency, performance and reliability.
EVGA’s dedication to performance has forged its newest higher-wattage power supply platform: the EVGA SuperNOVA P3 Series. With these new power supplies, EVGA took the best features of the award-winning P2 lineup and made them even better. The SuperNOVA P3’s smaller size, improved performance and a new Fluid Dynamic Bearing fan give you ultra-quiet performance with an increased lifespan.
Smaller size, Big Perfomance
A reduced size does not mean reduced performance with the EVGA SuperNOVA P3 power supplies. At only 180mm long, this makes the P3 one of the smaller 80 Plus Platinum power supplies on the market today, while offering improved performance and features.
Fluid Dynamic Bearing Fan
Better perfomance, quieter operation and a longer lifespan.
Next Gen Perfomance
Next generation systems deserve next-generation perfomance. The EVGA SuperNOVA P3 takes the already efficient P2 series and makes it even bettr with improved efficiency and lower ripple. These power supplies are over 92% efficient!
WHISPER QUIET
EVGA ECO mode means the power supply is completely silent during low to medium loads. This is one quiet power supply!

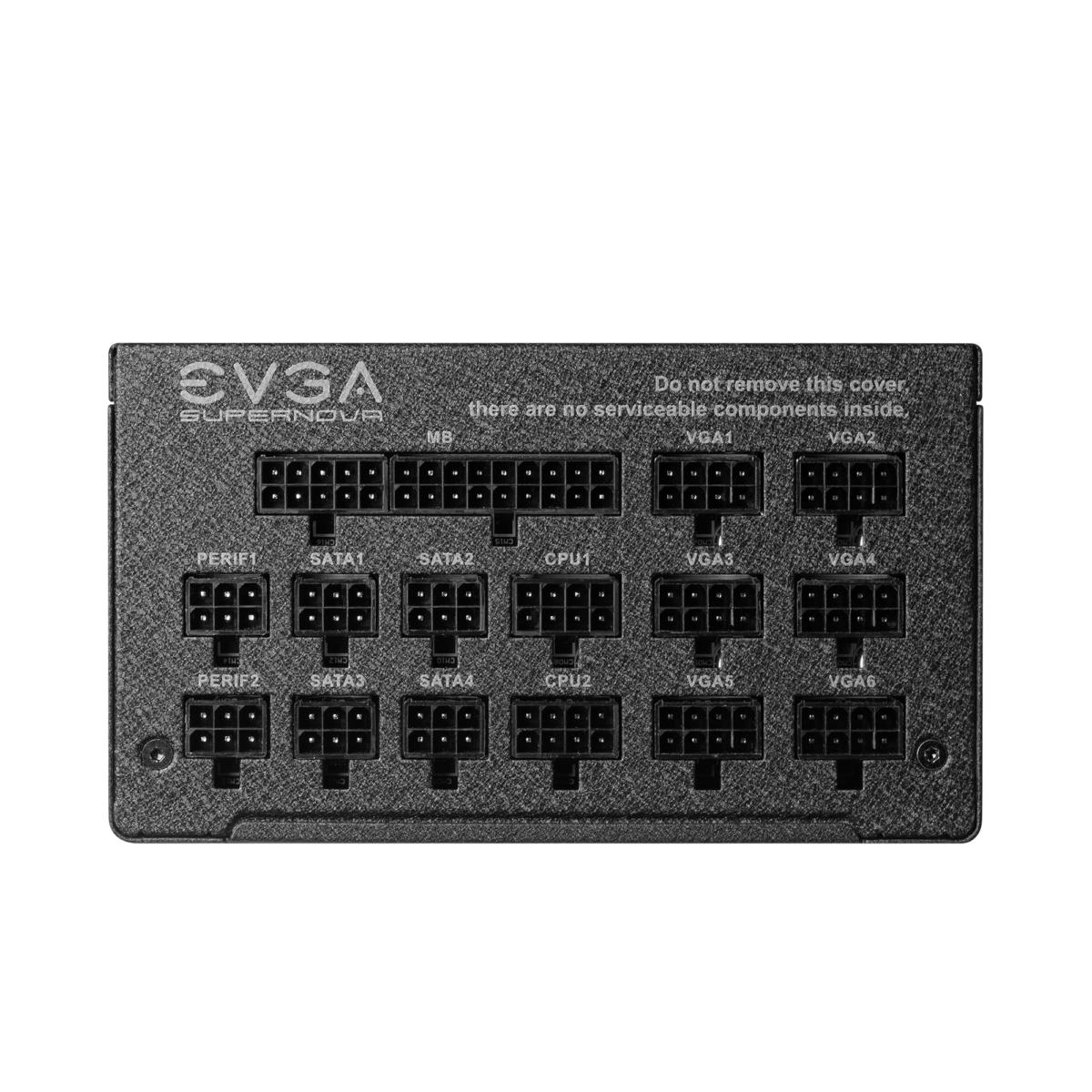

FULLY MODULAR DESIGN

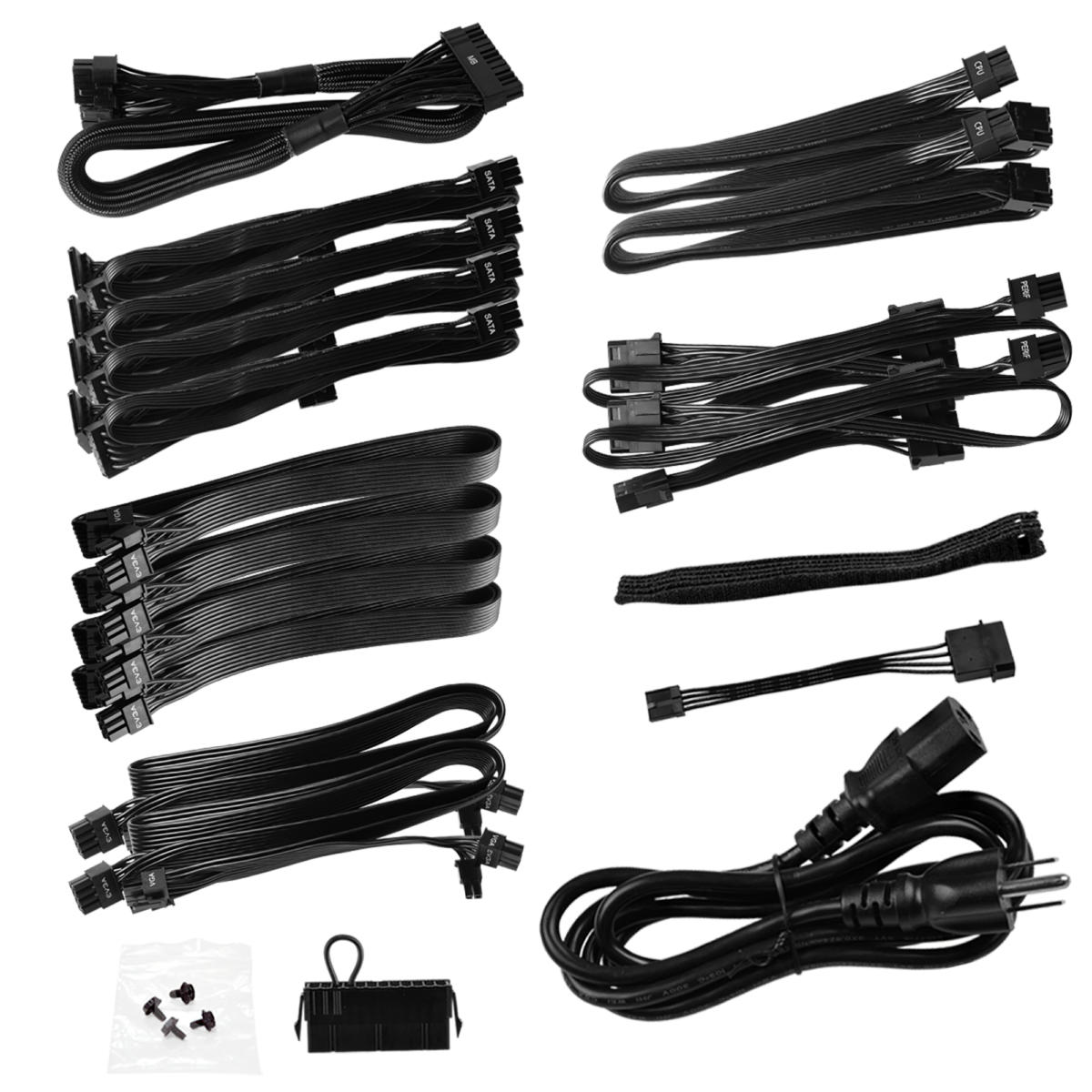

Use only the cables you need, reducing cable clutter and improving case airflow.
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 7 - 14 A |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Motherboard power connector | 24-pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 8 |
| Number of SATA power connectors | 12 |
| SATA power cable length | 550,650,750 mm |
| Peripheral (Molex) power cable length | 550,650,750,850 mm |
| EPS power connector (8-pin) | Y |
| EPS power connector (4+4 pin) | Y |
| PCI Express power connectors (8-pin) | 8 |
| CPU power cable length | 29.5" (75 cm) |
| ATX Power connector (24-pin) | Y |
| Floppy drive power connector | 1 |
| Floppy disk drive cable length | 3.94" (10 cm) |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Platinum |
| Mean time between failures (MTBF) | 100000 h |
| Product color | Black |
| Fan diameter | 5.31" (13.5 cm) |
| Number of fans | 1 fan(s) |
| Operating temperature (T-T) | 0 - 50 °C |
| Width | 5.91" (150 mm) |
| Depth | 7.09" (180 mm) |
| Height | 3.39" (86 mm) |
| Weight | 8.99 lbs (4.08 kg) |
