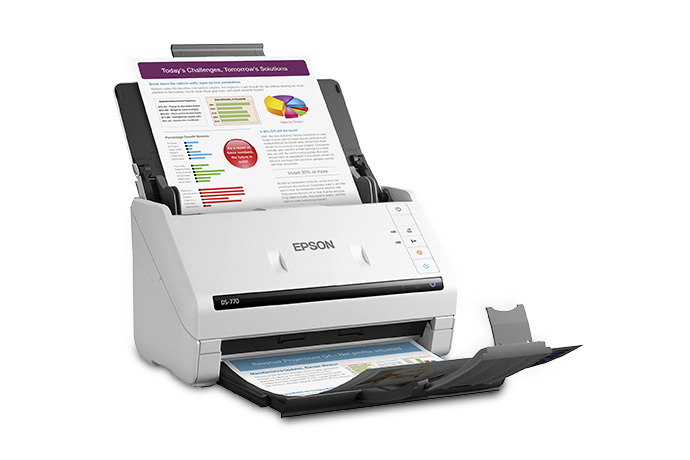

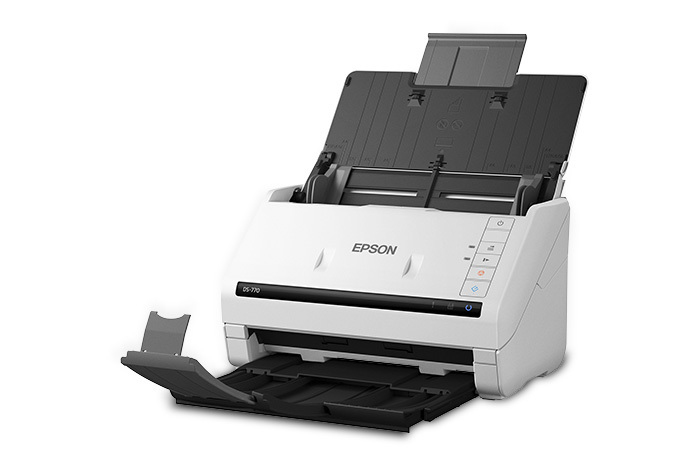

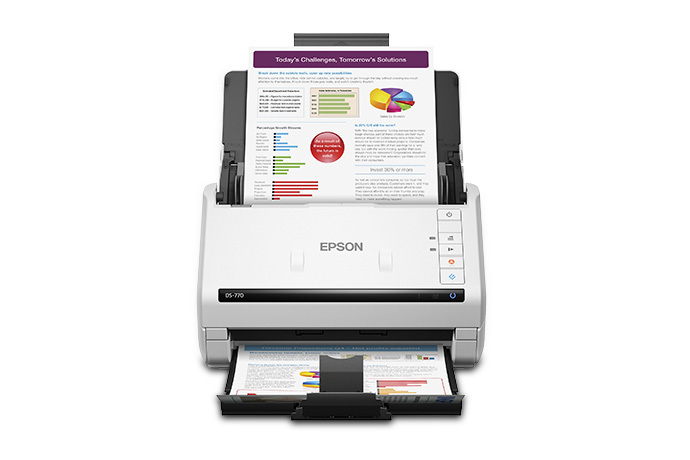

EPSON DS-770 DOCUMENT SCANNER 45PPM 100ADF
$533
SOLD OUT
We still have a selection of similar available alternatives, click to check them out
Additional information
Fast, easy, efficient document scanner with seamless integration.
Designed for greater efficiency in heavy-use environments, the DS-770 document scanner delivers high-quality scans up to 45 ppm/90 ipm1, plus a 100-page ADF. Included TWAIN and ISIS drivers ensure easy integration with existing professional document management systems, while a peak daily duty cycle up to 5,000 sheets2 offers added dependability for busy workgroups. The DS-770 scans to online storage accounts3, for greater efficiency getting critical documents to their destination. And, it’s all backed by an industry-leading 3-year limited warranty, with an Advance Exchange program featuring free Next-Business-Day shipping4.
| Maximum scan size | 8.5 x 8.5" (215.9 x 215.9 mm) |
| Optical scanning resolution | 600 x 600 DPI |
| Duplex scanning | Y |
| Color scanning | Y |
| Input color depth | 30 bit |
| Output color depth | 24 bit |
| Output grayscale depth | 8 bit |
| Output monochrome depth | 8 bit |
| Film scanning | N |
| ADF scan speed (b/w, A4) | 45 ppm |
| ADF scan speed (color, A4) | 45 ppm |
| Duplex ADF scan speed (b/w, A4) | 90 ipm |
| Duplex ADF scan speed (color, A4) | 90 ipm |
| Scanner type | Sheet-fed scanner |
| Built-in display | Y |
| Product color | White |
| Display | LCD |
| Sensor type | CIS |
| Daily duty cycle (max) | 5000 pages |
| Light source | LED |
| Scan file formats | JPG,PDF,TIFF |
| Scan to | E-mail, FTP, HTTP |
| Scan drivers | ISIS,TWAIN,WIA |
| Auto document feeder (ADF) input capacity | 100 sheets |
| Maximum ISO A-series paper size | A4 |
| ISO A-series sizes (A0...A9) | A4,A5,A6 |
| ISO B-series sizes (B0...B9) | B5,B6 |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
| Maximum scan area (ADF) | 8.5 x 240" (215.9 x 6096 mm) |
| Minimum scan area (ADF) | 2 x 2" (50.8 x 50.8 mm) |
| USB port | Y |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Optional connectivity | Ethernet |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
| Power supply type | AC |
| Power consumption (typical) | 17 W |
| Power consumption (standby) | 1.2 W |
| Power consumption (off) | 0.1 W |
| Input voltage | 100-240 V |
| Supported network protocols | IPv6 , TCP/IP, DHCP, DNS, SNMP, SLP |
| Package width | 14" (355.6 mm) |
| Package depth | 9" (228.6 mm) |
| Package height | 11" (279.4 mm) |
| Package weight | 10 lbs (4.54 kg) |
| Windows operating systems supported | Y |
| Mac operating systems supported | Y |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -25 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 85% |
| Width | 11.7" (296 mm) |
| Depth | 6.65" (169 mm) |
| Height | 6.93" (176 mm) |
| Weight | 8 lbs (3.63 kg) |
