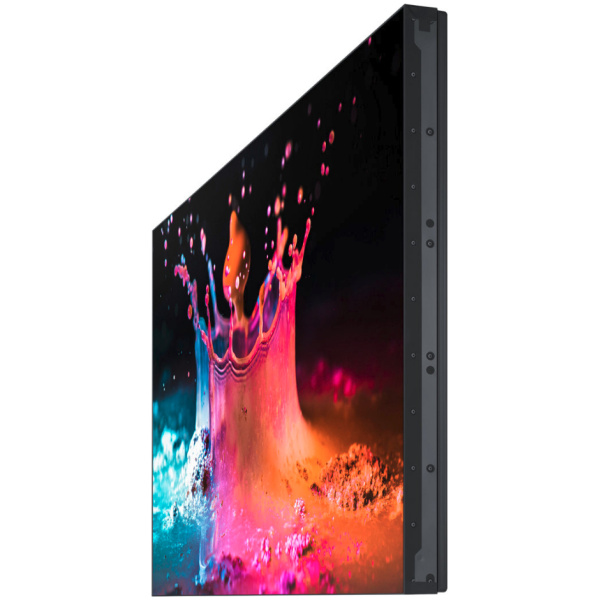

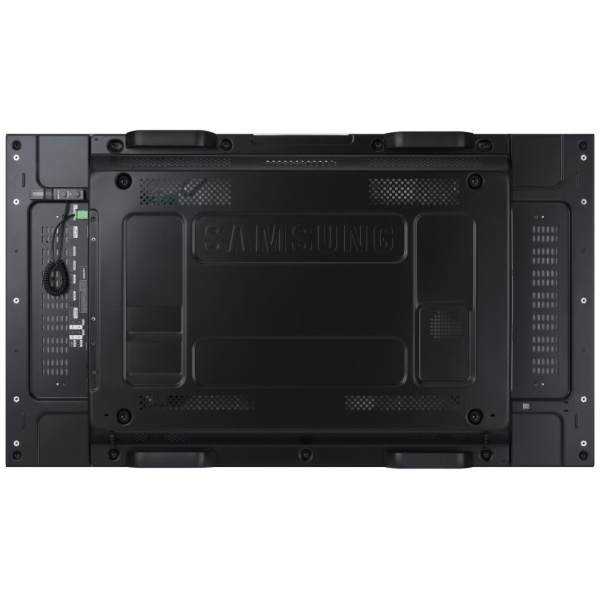

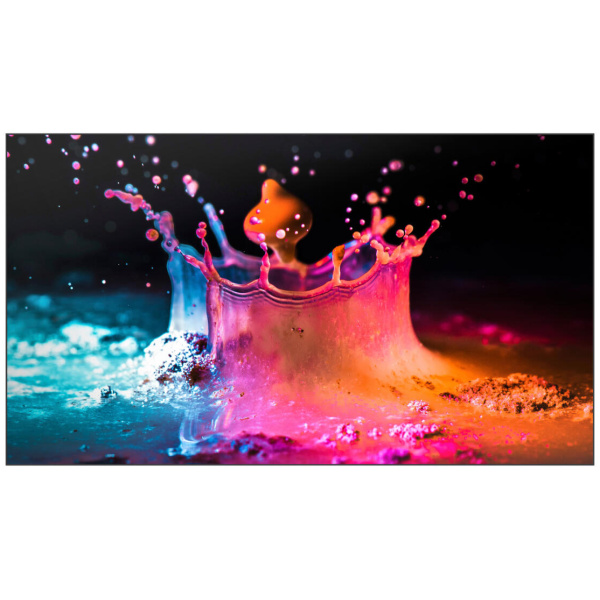

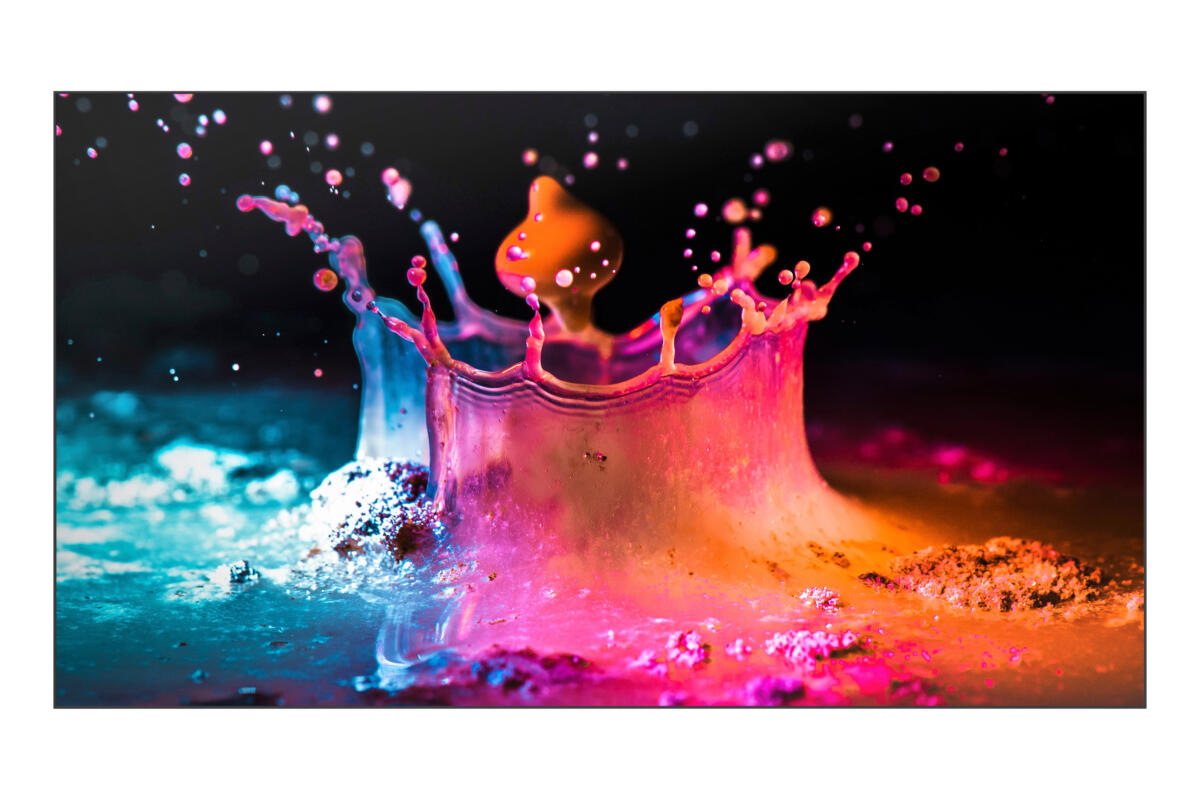

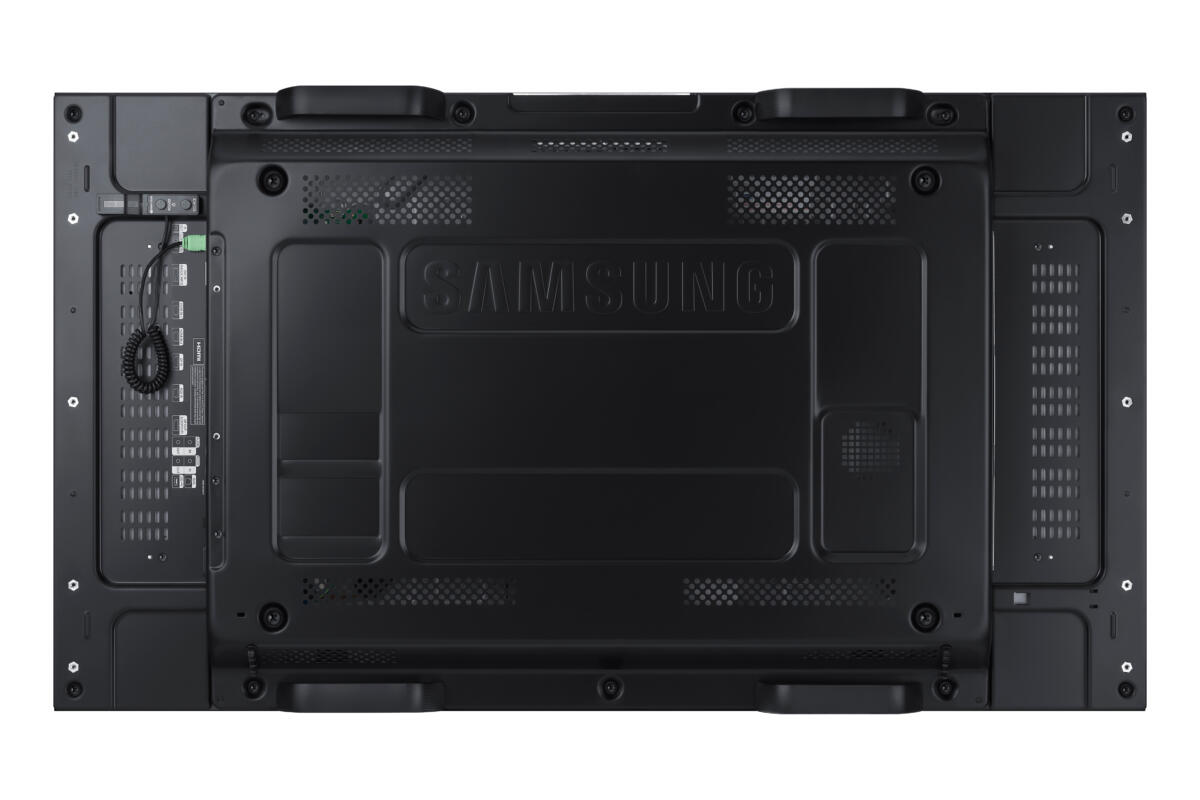

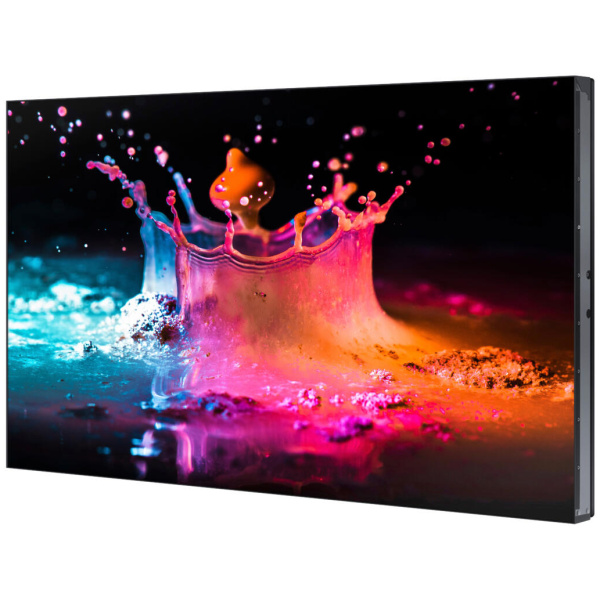

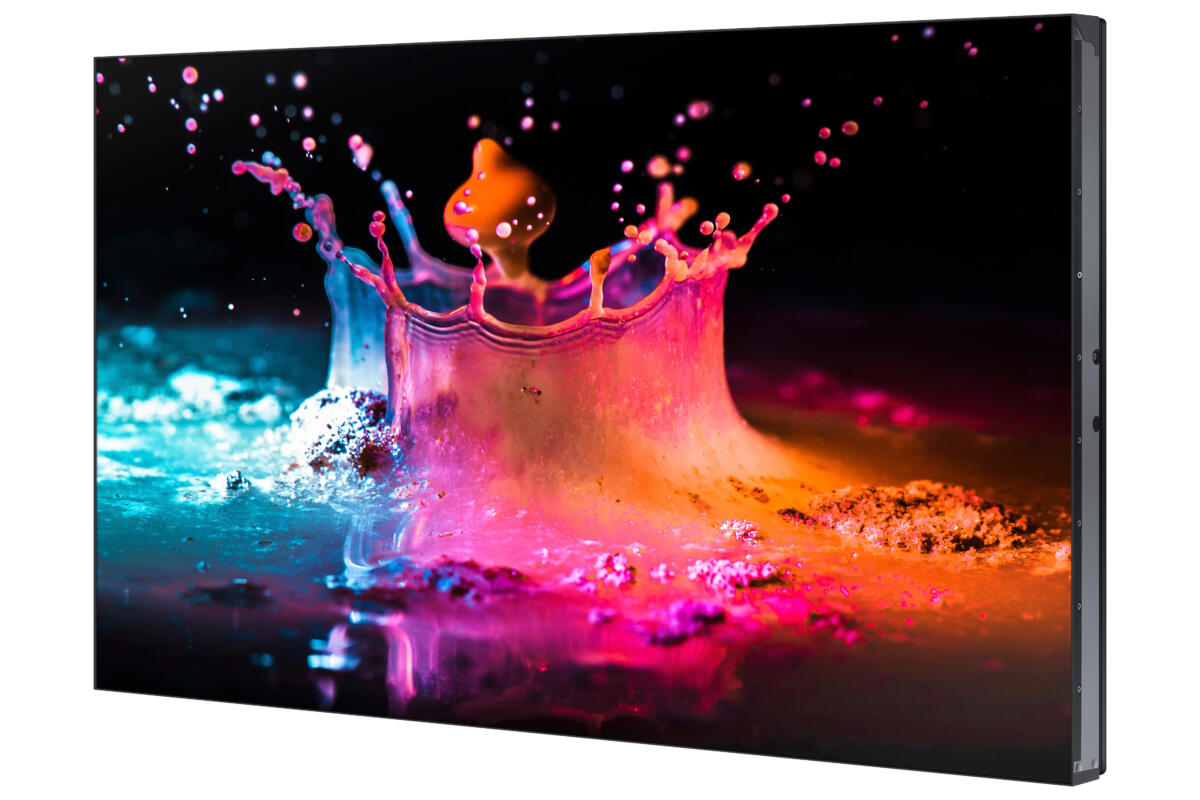

Samsung 46″ UDE Video Wall Professional Display

$1080$1296

1 in stockOnly 1 left at this price!

Eligible for an additional 5% discount!
With coupon code: NEW2024
Extra 5% off with coupon:
BLACKFRIDAY
Ends in:
About this product
SKU# LH46UDEHLBB-R | Item# 456678
Warranty: 1 Year Manufacturer Warranty
Condition: Factory Refurbished
Packaging: Retail Box
Notes: US – end user warranty
Minimum order quantity (MOQ): 1
Images and specifications are for reference only
Usually ships within 10-13 business days
Special order item, not eligible for return/cancellation execpt for More info
SKU: LH46UDEHLBB-R Category:

Additional information

AT A GLANCE
Create beautiful video walls in an affordable fashion. The UD46E-A features an ultra-thin bezel for virtually seamless matrices. Factory calibration provides brightness and color uniformity across multiple displays. And you can achieve 4K UHD resolution when you daisy chain multiple displays with the Display Port 1.2 digital loop-out feature, without the cost of external processing scalers and distribution boxes.
– Daisy chain multiple displays with Display Port 1.2 digital loop-out to achieve 4K UHD (3840×2160) resolution
– Ultra-narrow bezels at 3.5mm bezel-to-bezel (BtB) allow you to create virtually seamless video walls
– Factory-tuned for brightness and color uniformity right out of the box, with Advanced Color Management for customization
– LED backlight technology reduces power consumption and heat output common in large videowalls

Beautiful Video Walls
Create elaborate, stunning video walls. And when you daisy chain multiple displays with the Display Port 1.2 digital loop-out feature, you can achieve 4K UHD (3840×2160) resolution. So you can deliver exceptional content with fine detail for a stunning, impactful experience.

Ultra-Narrow 3.5mm Bezels
The UD46E-A features incredibly thin bezels at a mere 3.5mm bezel-to-bezel. So you can create virtually seamless video walls with elegance and sophistication.

Factory Calibration
Samsung’s factory calibration ColorExpert technology helps to minimize color difference across multiple displays. Factory-tuned for brightness, color temperature and gamma, you can experience color uniformity right out of the box for consistent video wall matrices.

Advanced Color Management (ACM)
The ACM solution provides a user-friendly interface to implement customized and detailed color adjustments. Fine-tune luminance, temperature and gamma through auto calibration, manual calibration and duplication to achieve the perfect display for your business.

Display diagonal46"
Display technologyLED
Display resolution1920 x 1080 pixels
Display brightness700 cd/m²
HD typeFull HD
TouchscreenNo
LED backlighting typeDirect-LED DID
Response time8 ms
Contrast ratio (typical)3500:1
Contrast ratio (dynamic)10000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colors16.78 million colors
Pixel pitch0.0209 x 0.0209" (0.53 x 0.53 mm)
Active display area (W x H)22.5 x 40.1" (572.7 x 1018.1 mm)
Horizontal scan range30 - 81 kHz
Vertical scan range48 - 75 Hz
Supported graphics resolutions1920 x 1080 (HD 1080)
Supported video modes1080p
Color gamut72%

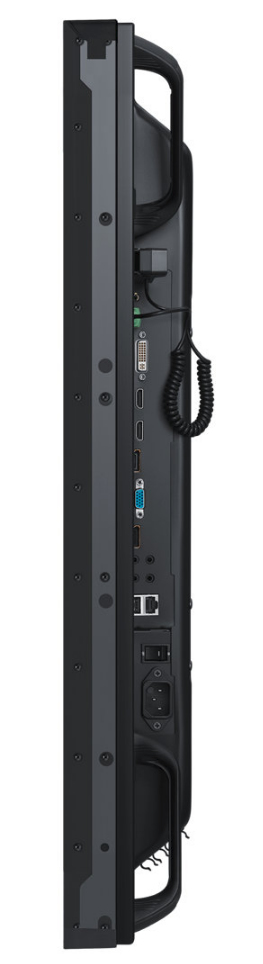

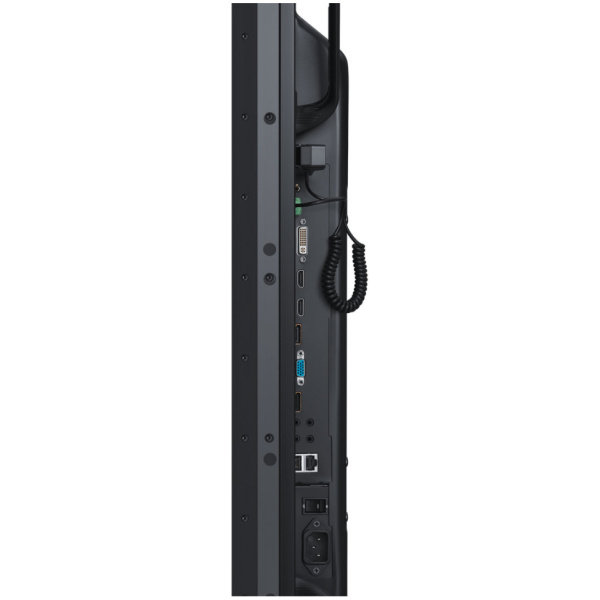

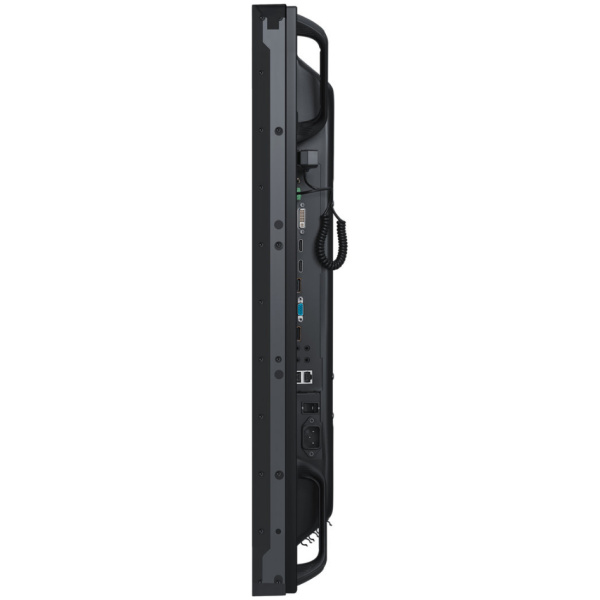

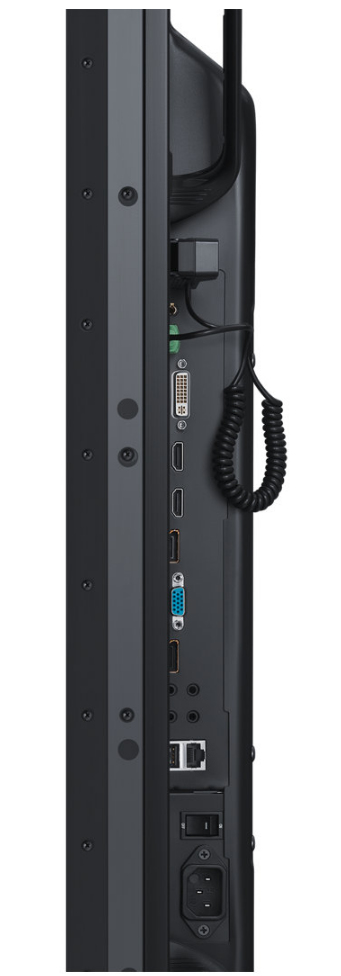

HDMI ports quantity2
DVI portYes
DisplayPorts quantity2
USB portNo
Ethernet LANYes
Wi-FiNo
DVI-D ports quantity1
VGA (D-Sub) input ports1
Ethernet LAN (RJ-45) ports1
RS-232CYes
Built-in speaker(s)No
Product designDigital signage flat panel
Product colorBlack
VESA mountingYes
Panel mounting interface600 x 400 mm
Bezel width (bottom)0.0906" (2.3 mm)
Bezel width (side)0.0472" (1.2 mm)
Bezel width (top)0.0906" (2.3 mm)
On Screen Display (OSD)Yes
Operating hours (hours/days)24/7
HDCPYes
Power consumption (typical)128 W
Power consumption (sleep)0.5 W
Power consumption (max)187 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Heat dissipation2176.9 BTU/h
Width40.3" (1023 mm)
Depth3.8" (96.5 mm)
Height22.8" (579 mm)
Weight39.7 lbs (18 kg)
Package width45.7" (1160 mm)
Package depth11" (280 mm)
Package height28.1" (715 mm)
Package weight49.4 lbs (22.4 kg)
Handheld remote controlYes
Batteries includedYes
Cables includedAC, DisplayPort
Warranty cardYes
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 80%
CertificationFCC (USA) FCC Part 15, Subpart B class A, CE (Europe) EN55022, EN55024, VCCI (Japan) V-3 (CISPR22), KCC (Korea):KN22, KN24, BSMI (Taiwan) : CNS13438 (CISPR22), C-Tick (Australia) : AS/NZS3548 (CISPR22), CCC(China) : GB 9254-2008, GB 17625.1-2012 UL (USA) : UL 60950-1, CSA (Canada) : CSA C22.2 No. 60950-1, TUV (Germany) : EN60950-1, NEMKO (Norway) : EN60950-1, KC (Korea) : K60950-1, CCC (China) : GB4943.1-2011, PSB (Singapore) : IEC60950-1, GOST (Russia) : IEC60950-1, EN55022, SIQ (Slovenia) : IEC60950-1, EN55022, PCBC (Poland) : IEC60590-1, EN55022, NOM (Mexico) : NOM-019-SCFI-1993, IRAM (Argentina) : IEC60950-1, SASO (Saudi Arabia) : IEC60950-1
Harmonized System (HS) code85285210
Sustainability certificatesRoHS, ENERGY STAR
Quick start guideYes
Dot clock scanning frequency148.5 MHz
Viewing angle178°
DisplayPort version1.2
Plug and PlayYes
Energy efficiency class (old)D
