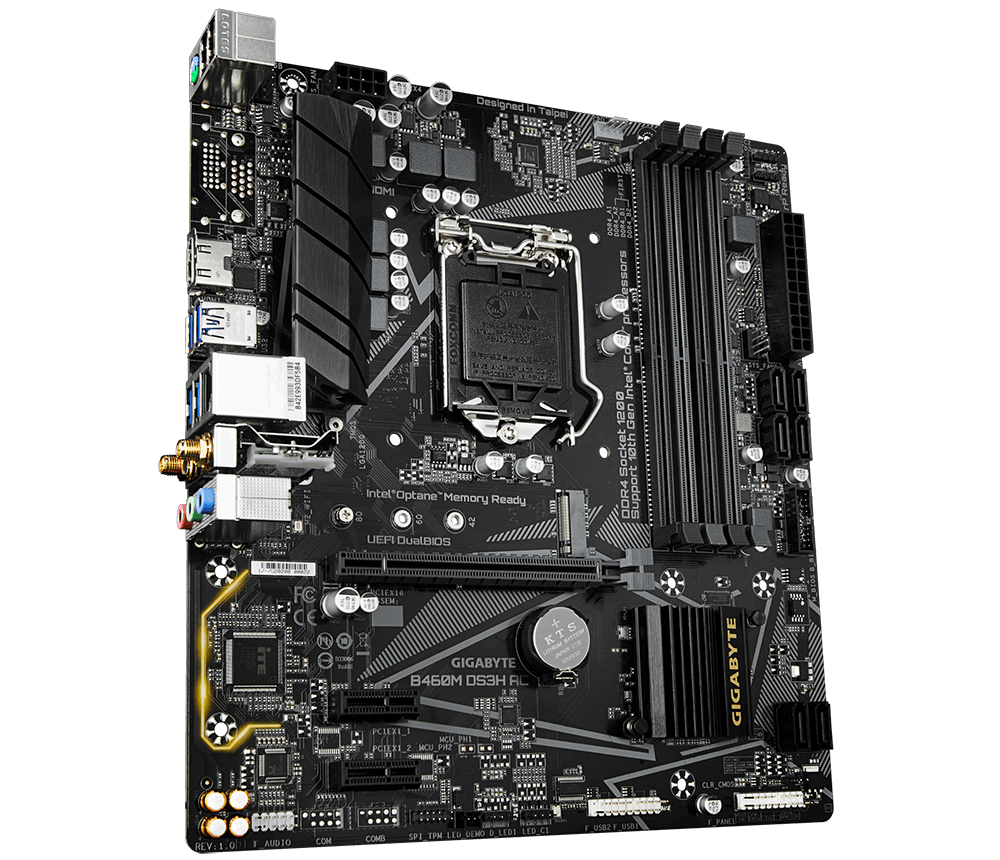

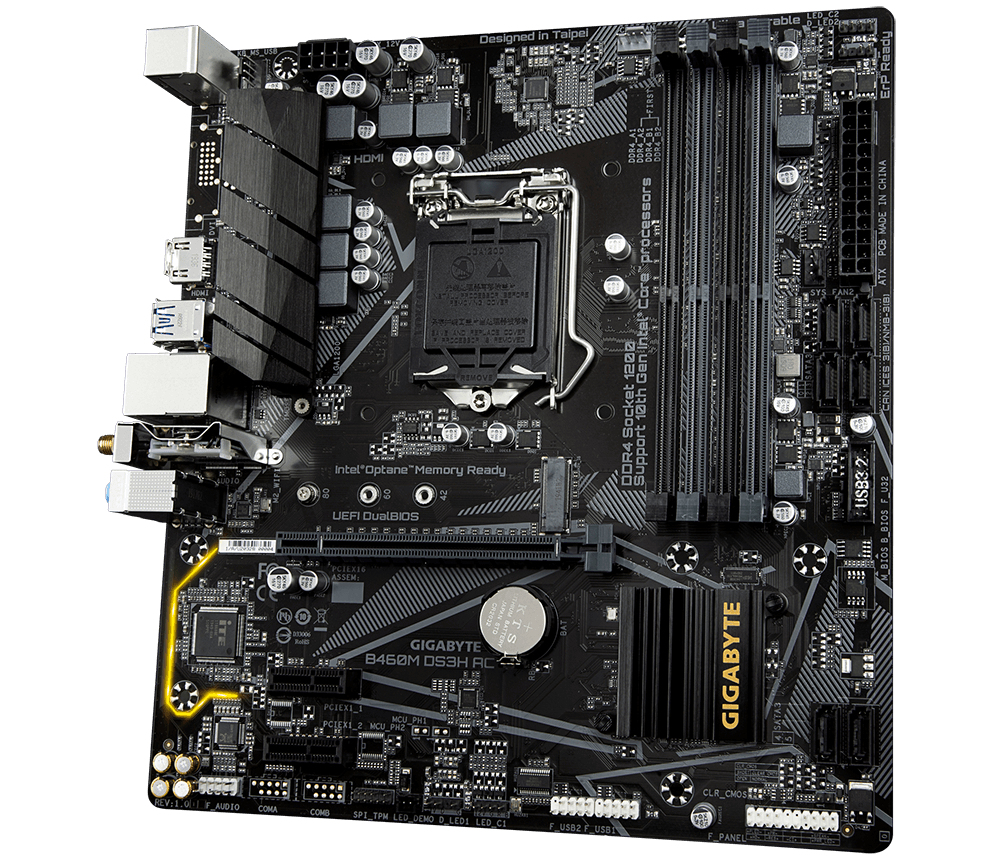

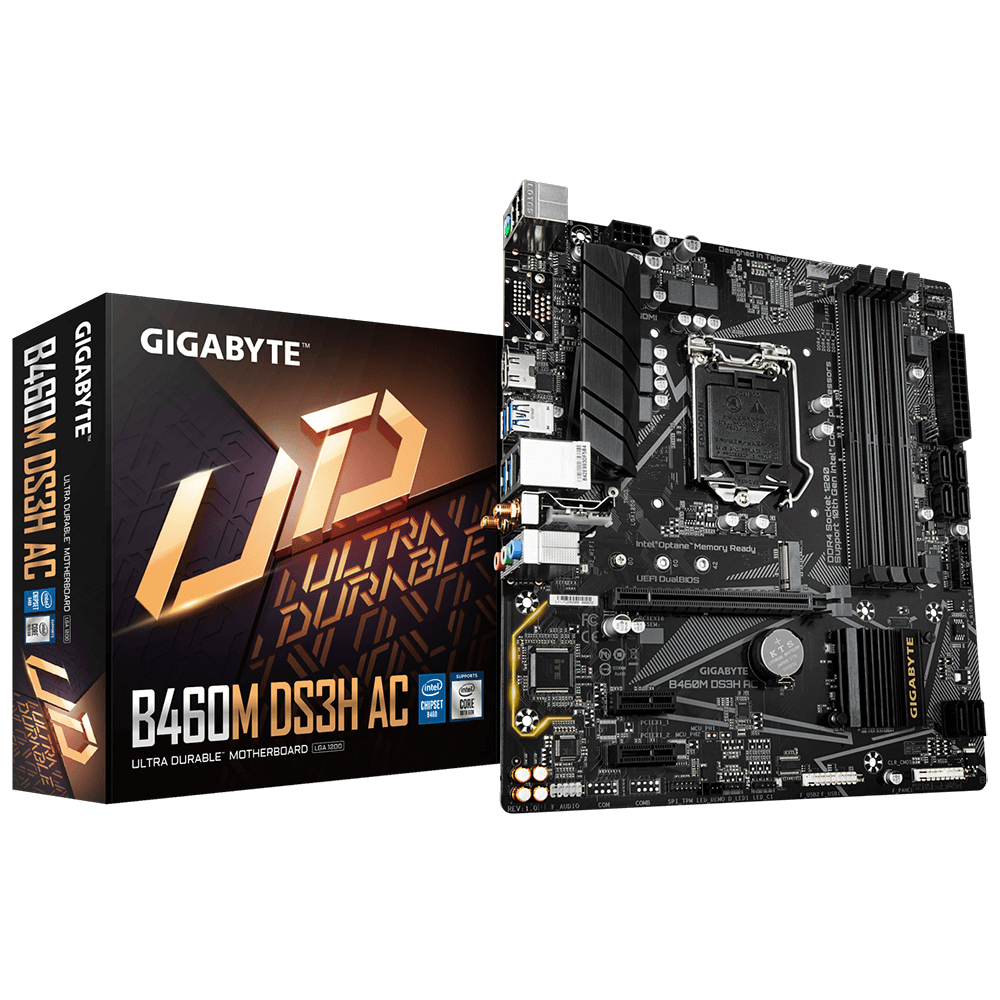

Gigabyte B460M DS3H AC Intel B460 1200 LGA MicroATX M.2 Desktop Motherboard – B GRADE

$69

Out of stock

Don't miss our Special Coupons:
BFTG2110 - $10 (Order above $250)
BFTG2120 - $20 (Order above $600)
BFTG2130 - $30 (Order above $800)
BFTG2140 - $40 (Order above $999)
Offer ends in
About this product
SKU# B460M DS3H AC-RB | Item# 234765
Warranty: 90 Day Warranty
Condition: Factory Refurbished B GRADE
Packaging: Generic Box
Notes: Motherboard ONLY - No I/O Shield, no other accessories. Manufacturer tested and Refurbished.
Minimum order quantity (MOQ): 1
We are not responsible for any typographical and/or photographic errors
Usually ships within 7-10 business days
Special order item, not eligible for return/cancellation. More info
SKU: B460M DS3H AC-RB Category:

Additional information

4+2 Hybrid Digital VRM with Low RDS(on) MOSFET

GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy saving which are beneficial for both end-users and the environment without impacting system performance.

Faster and Better Coverage with Intel Dual Band 802.11ac WIFI + BT 4.2 Module

The onboard 802.11ac WIFI module from Intel® supports Dual Band and up to 433 Mbps, 3x faster WIFI speed than 802.11n and also support BLUETOOTH 4.2.

Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

Program On Top Gets Highest Priority

Real-Time Network Monitoring

NVMe PCIe Gen3 x4 2280 M.2 Connector (Up to 32 Gb/s)

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

GIGABYTE Patented Double Locking Bracket

GIGABYTE Patented DualBIOS™ Design

GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC’s most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a ‘Main BIOS’ and a ‘Backup BIOS’, protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Supports RGB Light Strips in 7 Colors

Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your system appearance unique!

Processor manufacturerIntel
Processor socketLGA 1200
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Supported memory typesDDR4-SDRAM
Number of memory slots4
Maximum internal memory128 GB
Memory slots typeDIMM
Memory channelsDual-channel
Non-ECCY
Supported memory clock speeds2133,2400,2666,2933 MHz
Unbuffered memoryY
Supported storage drive interfacesM.2,SATA III
Supported storage drive typesHDD & SSD
Number of HDDs supported6
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
Front panel audio connectorY
Front panel connectorY
ATX Power connector (24-pin)Y
CPU fan connectorY
EPS power connector (8-pin)Y
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
PS/2 ports quantity1
Wi-FiY
Ethernet LANY
Ethernet interface typeGigabit Ethernet
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
BluetoothY
Bluetooth version4.2
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel B460 Express
Audio output channels7.1 channels
Audio chipRealtek ALC887
PC health monitoringFan, Temperature, Voltage
Windows operating systems supportedWindows 10 x64
PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots1
BIOS typeUEFI AMI
ACPI version5.0
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Width9.61" (244 mm)
Depth8.86" (225 mm)
