GIGABYTE Aorus GP-ASM2NE6200TTTD 2.5" 2TB PCIe Solid State Drive (SSD) GOLD

$282

SOLD OUTClick for similar items

Don't miss our Special Coupons:
BFTG2110 - $10 (Order above $250)
BFTG2120 - $20 (Order above $600)
BFTG2130 - $30 (Order above $800)
BFTG2140 - $40 (Order above $999)
Offer ends in
About this product
SKU# GP-ASM2NE6200TTTD | Item# 153250
Warranty: 90 Day Warranty
Condition: New Factory Sealed

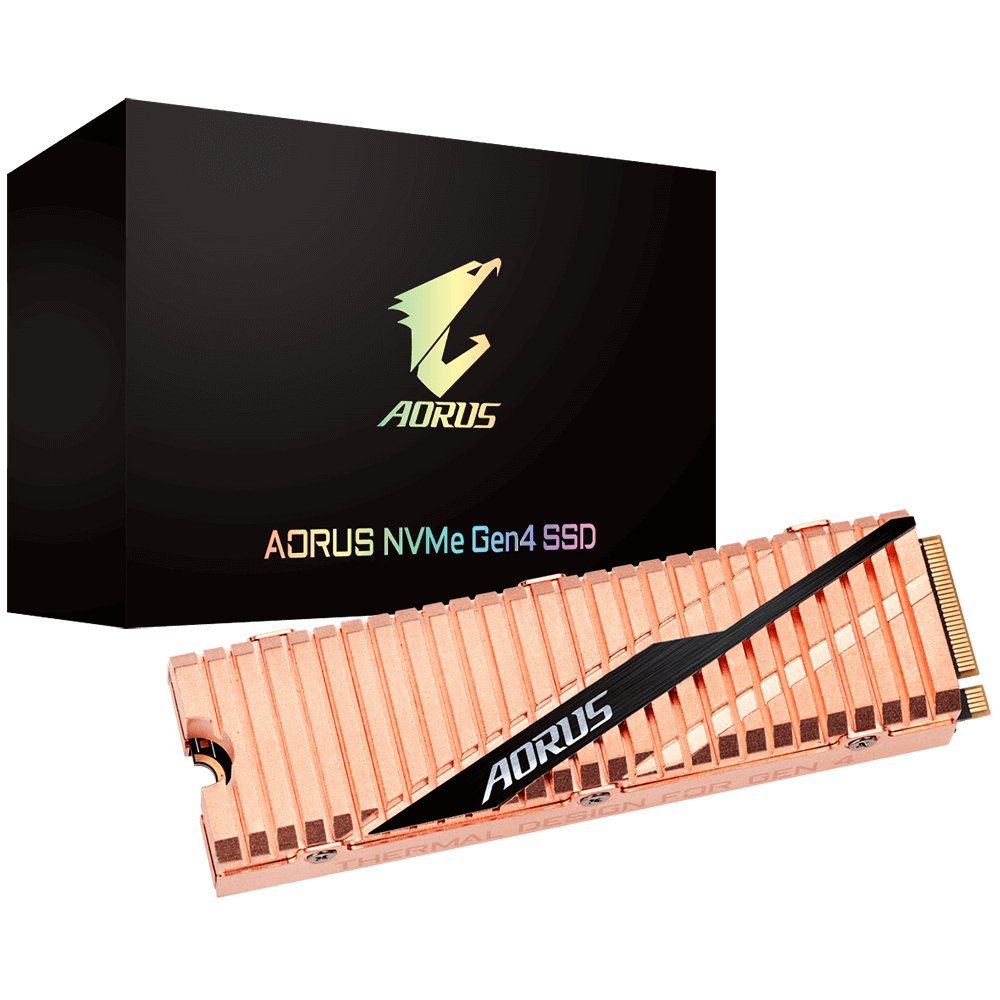

Packaging: Retail Box
Minimum order quantity (MOQ): 1
Images and specifications are for reference only
Usually ships within 7-10 business days
Special order item, not eligible for return/cancellation execpt for More info
SKU: GP-ASM2NE6200TTTD Category:

Additional information

World First PCIe 4.0×4 Controller
The World First PCIe 4.0×4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. The advanced fabrication process ensures PS5016-E16 has enough compute power for ECC processing when adopting the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM caching, and a PCIe 4.0×4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, and Wear Leveling, Over-Provision technologies to improve reliability and durability of SSDs.

NAND Flash Selected for High Quality and Performance
TOSHIBA BiCS4 96 Layers 3D TLC (800MT/s)
Toshiba BiCS4 NAND Flash optimizes circuitry and architecture by increasing to 96 layers for higher storage space per unit area. 800MT/s throughput on the AORUS NVMe Gen 4 SSD far exceeds that of PCIe 3.0×4 devices for superior storage performance.

Xtreme Storage Performance
With the new PCIe 4.0 controller, AORUS NVMe Gen 4 SSD delivers blazing speeds: up to 5,000 MB/s for sequential read, and up to 4,400MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 40% faster than PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering.

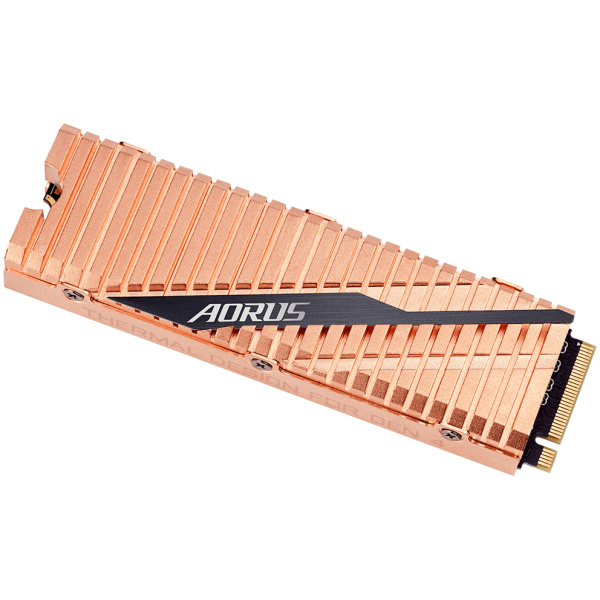

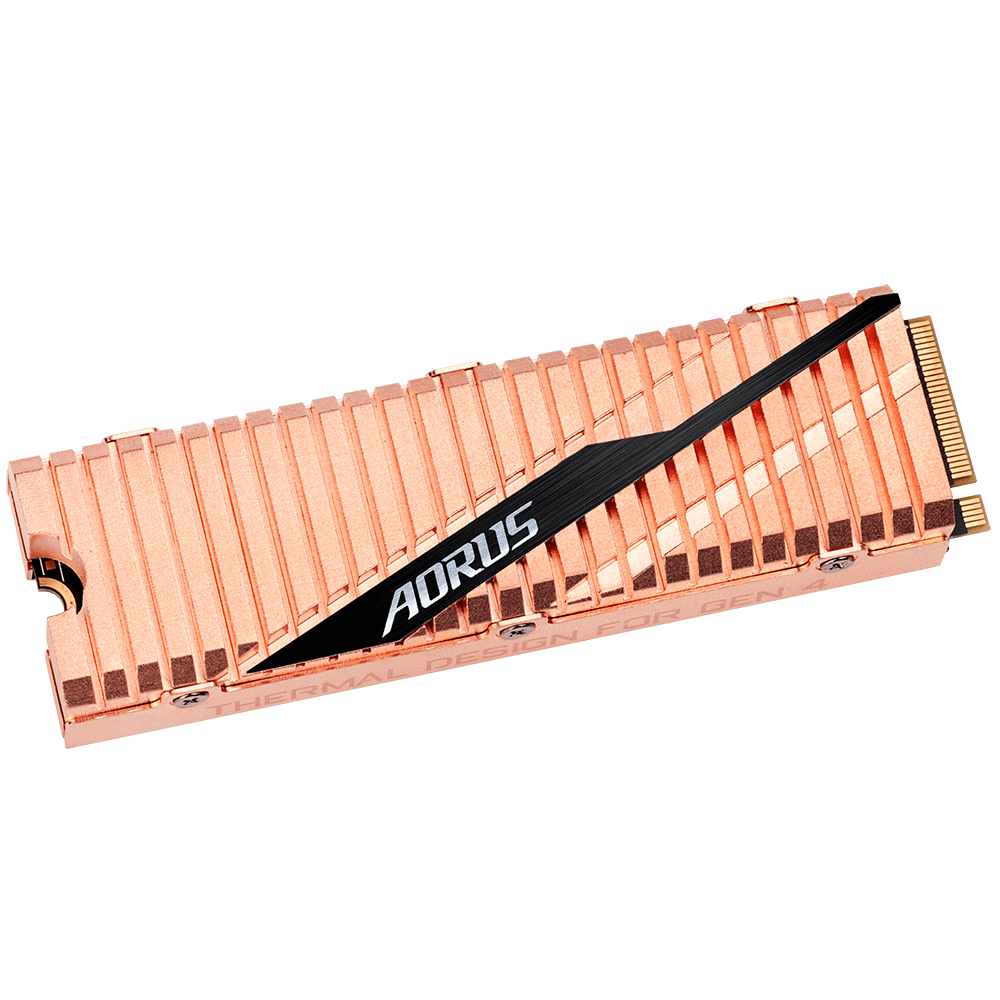

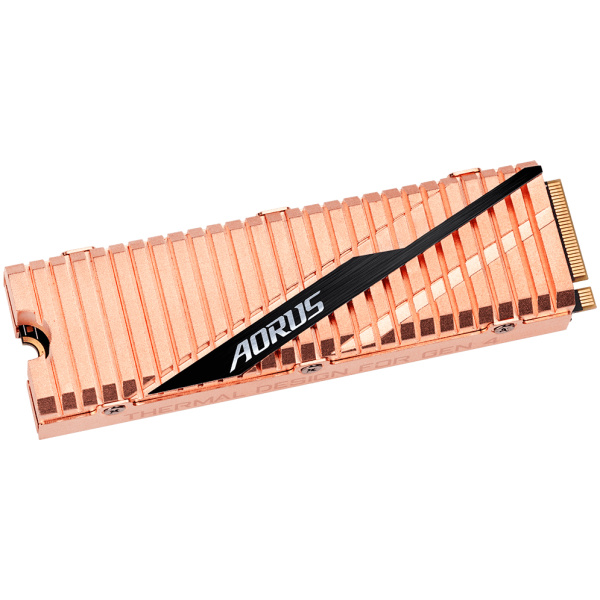

Full Body Copper Thermal Solution for Outstanding PCIe 4.0 SSD Performance
The Full Body Copper Heatsink takes into account the heat transfer from key components on both the front and back of the device, the controller and NAND Flash. Full copper heatsinks have 69% higher heat transfer capacity compared to aluminum heatsinks giving AORUS NVMe Gen4 SSD the best heat dissipation for read/write performance.

Efficient Copper Heat Spreader Design
Compared with a plated M.2 heat spreader, new efficient copper heat spreaders with 27 fins add more surface area which improve thermal transfer from heating sources to obtain thermal balance sooner. Moreover, Optimized fin array design does great heat exchange with any direction of air flow. Both unique design make sure key components of PCIe 4.0 SSD to keep suitable working temperature under ultra high transfer rate.

Why is keeping an SSDs at lower temperatures so important?
– Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher.
– With Full Body Copper Heat Spreaders, the AORUS NVMe Gen 4 SSD can operate at lower working temperatures to improve data storage reliability. Furthermore, SSDs can deliver extreme performance for longer periods.

SSD Tool Box
The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.

SSD form factorM.2
SSD capacity2000 GB
InterfacePCI Express 4.0
Memory type3D TLC
NVMeY
Component forPC/notebook
NVMe version1.3
Read speed5000 MB/s
Write speed4400 MB/s
Random read (4KB)750000 IOPS
Random write (4KB)700000 IOPS
S.M.A.R.T. supportY
TRIM supportY
Mean time between failures (MTBF)1770000 h
Power consumption (read)6.5 W
Power consumption (write)6.6 W
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Width3.17" (80.5 mm)
Depth0.925" (23.5 mm)
Height0.449" (11.4 mm)
ManualY
Package typeBox
