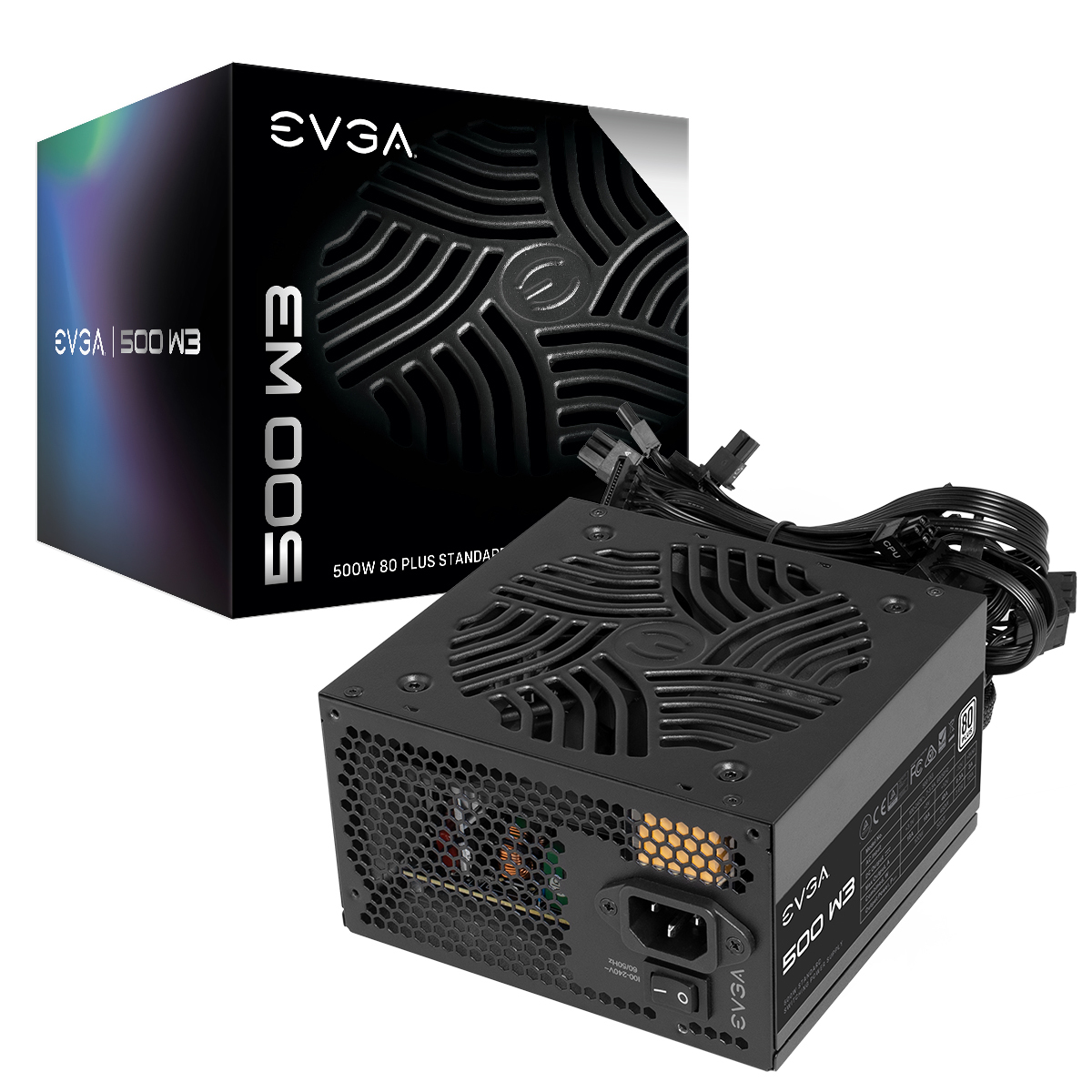

EVGA 500 W3, 80+ WHITE 500W, 3 Year Warranty, Power Supply
$43
SOLD OUT
We still have a selection of similar available alternatives, click to check them out
Additional information
Nothing beats a great value, and the EVGA 500 W3 80 PLUS Certified power supply is one of the top-performing budget power supplies available with the connectors and protections needed for most system builds. Powered by up to 40A on a single +12V rail gives you more hardware options to improve your system’s performance. Save space and reduce case clutter with a small, compact design and fully sleeved cables. Featuring EVGA’s standard 3 year limited warranty and ultra-quiet fan design, the EVGA 500 W3 is a perfect compliment to your next build.
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum input current (@110V) | 7 A |
| Maximum input current (@220V) | 3.5 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 480 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 40 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 80% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 21.7" (55 cm) |
| Number of SATA power connectors | 6 |
| SATA power cable length | 450,570,690 mm |
| Peripheral (Molex) power cable length | 450,570,690,810 mm |
| EPS power connector (4+4 pin) | Y |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 26.4" (67 cm) |
| ATX Power connector (24-pin) | Y |
| Floppy drive power connector | 1 |
| Floppy disk drive cable length | 31.9" (81 cm) |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS White |
| Mean time between failures (MTBF) | 100000 h |
| Certification | TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS |
| Product color | Black |
| Cooling type | Active |
| Fan diameter | 4.72" (12 cm) |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Y |
| Operating temperature (T-T) | 0 - 40 °C |
| Width | 5.91" (150 mm) |
| Depth | 5.51" (140 mm) |
| Height | 3.39" (86 mm) |
