Dell UD22 Universal Dock
$335$402
781 in stock
BLACKFRIDAY
Ends in:
Additional information

Universal connectivity
Consistent experience
Connect to any USB-C notebook, regardless of the manufacturer, and run any operating system.
Multiple monitor support
Enhance your coworking spaces with consistent display support across different systems.
High power delivery
Achieve a fast-charging experience with up to 96W power delivery for any USB-C notebook.

Next-level productivity
Enhanced display support
Maximize productivity with the highest number of displays supported on a universal dock, enabling connection of up to four 4K monitors via DisplayLink drivers.
Multiple ports
With the highest number of ports on a universal dock, create a productive work station with increased flexibility.

Seamless experience and supportive management
Faster, easier deployment
Connect your laptop and get started quickly even when the DisplayLink driver is not installed, thanks to the additional support for DP Alt mode.
Hoteling made convenient
Enhance the shared workspace experience further with DisplayLink’s layout provisioning feature that enables preconfigured display layout automatically for the users.
Extended warranty
Dell Docks now have their own service tags, along with a 3 to 5 year warranty option for the best support, management and upgradeability possible.

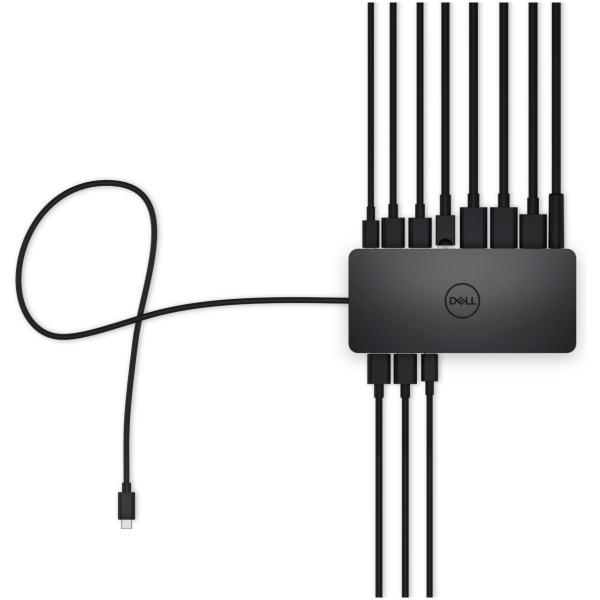

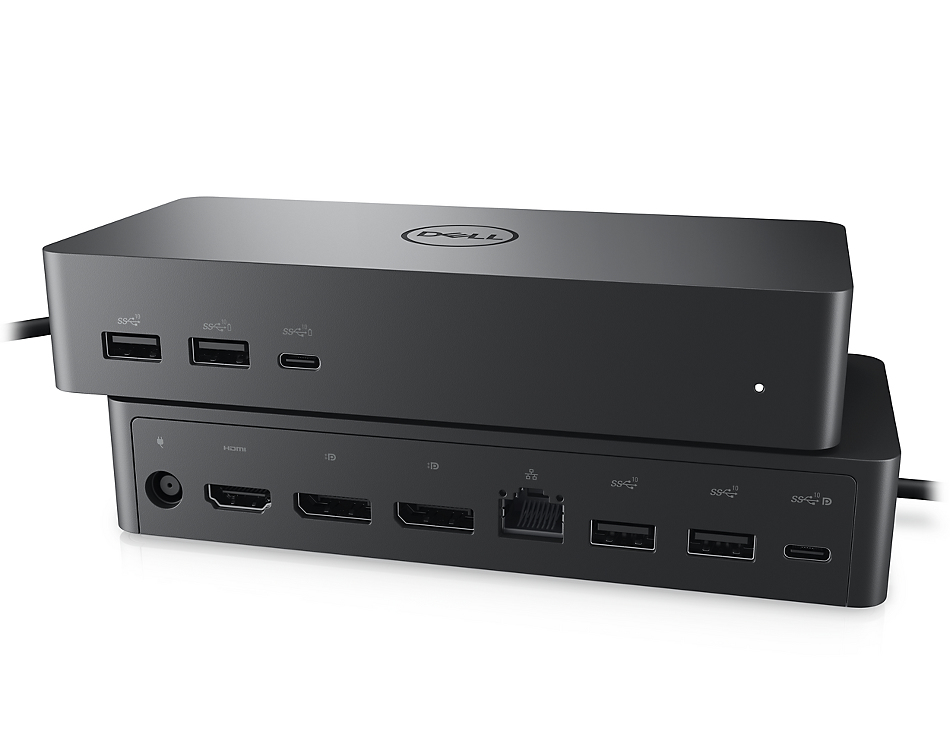

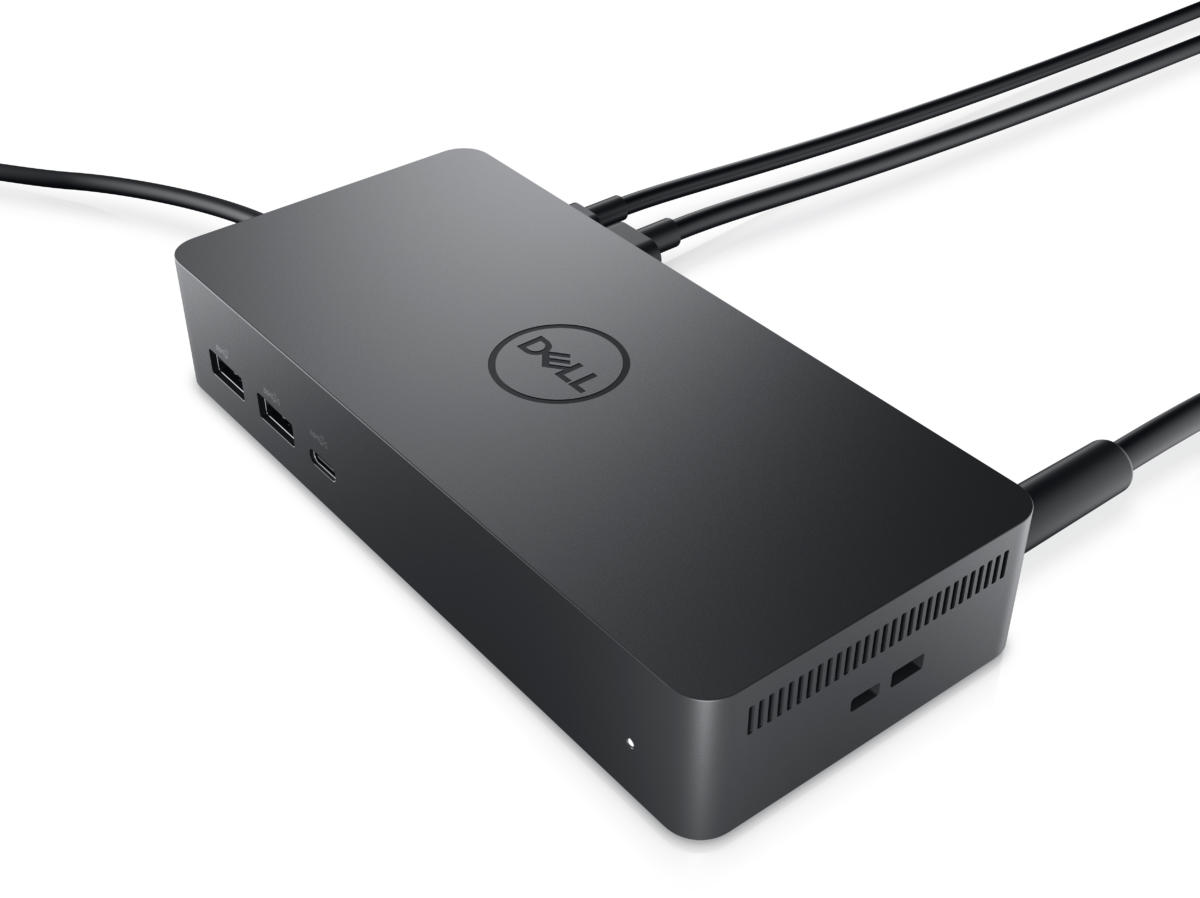

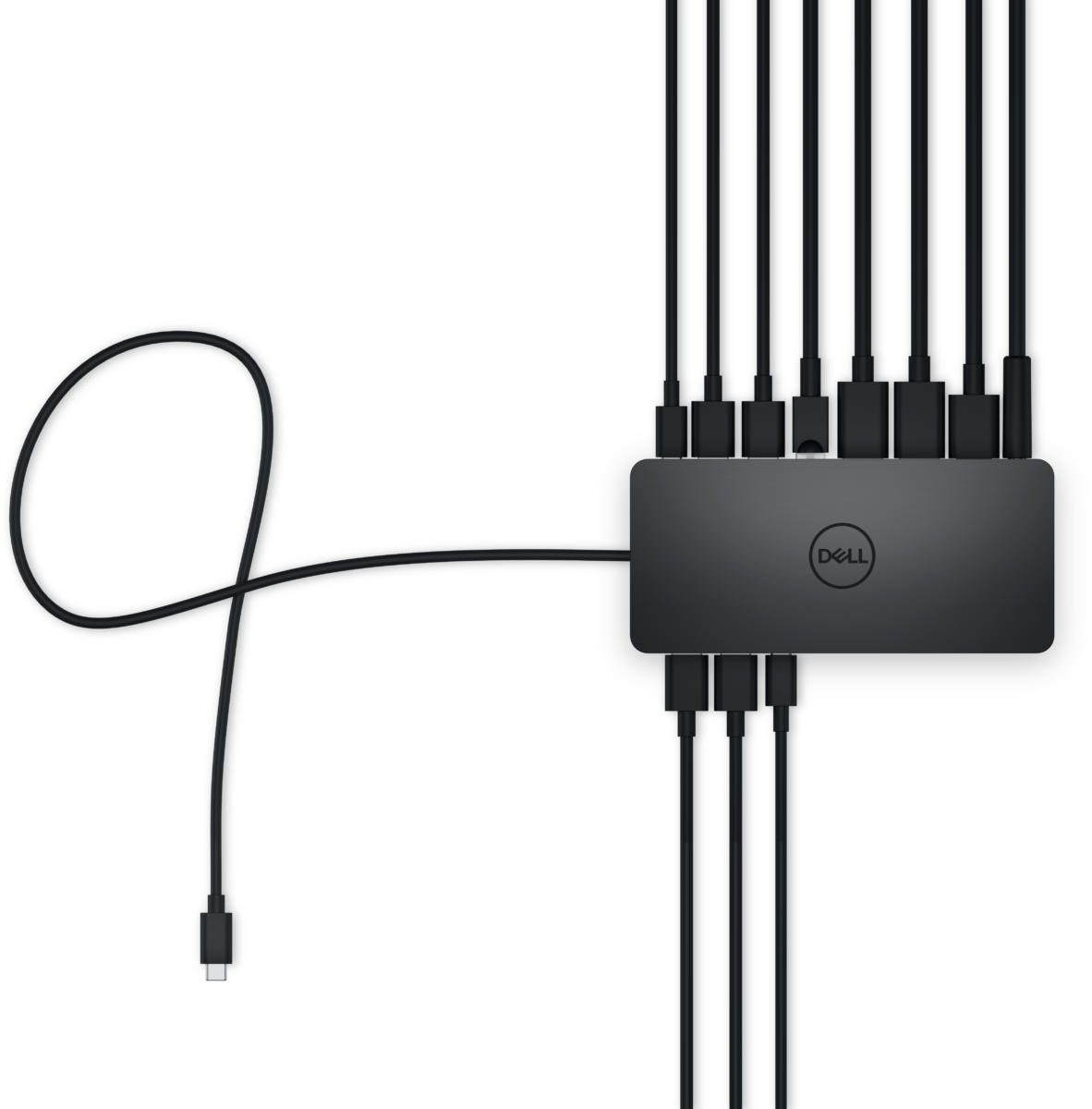

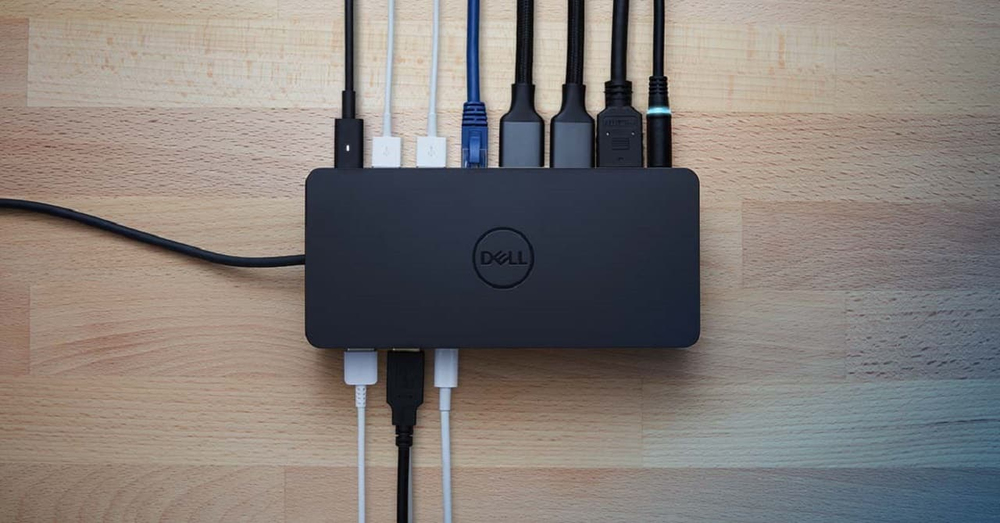

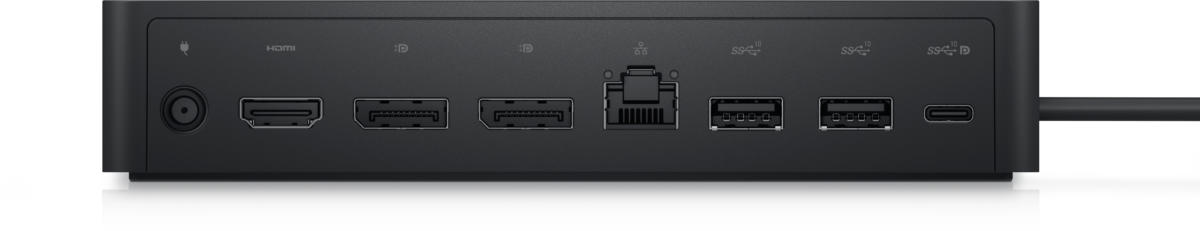

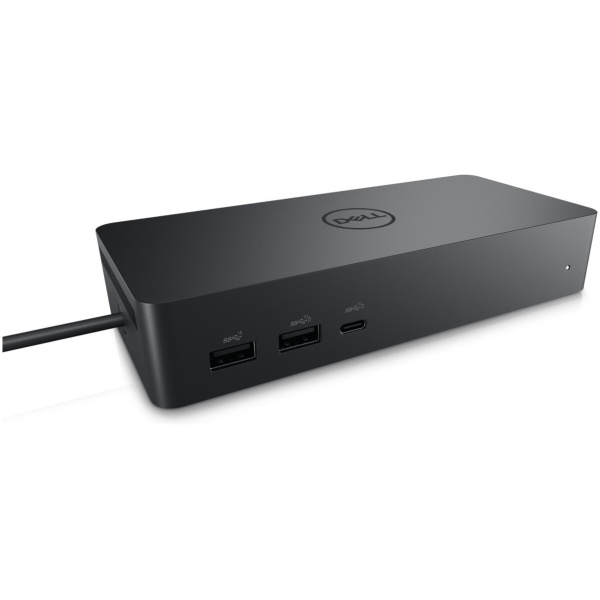

Experience the ultimate universal dock, equipped with 10 ports, for any USB-C notebook.
Connectivity technology | Docking |
Host interface | Thunderbolt |
HDMI ports quantity | 1 |
Microphone in | N |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
PowerShare | Y |
Number of USB ports with PowerShare support | 2 |
USB Power Delivery | Y |
USB Power Delivery revision | 3.0 |
USB Power Delivery up to | 96 W |
HDMI version | 2.0 |
DisplayPorts quantity | 2 |
DisplayPort version | 1.4 |
DC-in jack | Y |
USB Type-C DisplayPort Alternate Mode | Y |
Ethernet LAN | Y |
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Product color | Black |
Card reader integrated | N |
Maximum digital resolution | 5120 x 2880 pixels |
Cable lock slot | Y |
Cable lock slot type | Kensington |
VESA mounting | Y |
Maximum VESA mount | 3.94 x 3.94" (100 x 100 mm) |
LED indicators | Y |
Power source type | DC |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Input current | 2.5 A |
Power supply | 130 W |
Output voltage | 19.5 V |
Output current | 6.67 A |
Windows operating systems supported | Windows 10, Windows 11 |
Mac operating systems supported | MacOS |
Linux operating systems supported | Ubuntu 20.04 LTS |
Other operating systems supported | ChromeOS |
Operating temperature (T-T) | 0 - 35 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 10 - 80% |
Storage relative humidity (H-H) | 5 - 90% |
Width | 2.99" (76 mm) |
Depth | 6.54" (166 mm) |
Height | 1.26" (32 mm) |
Weight | 14.7 oz (416 g) |
Cables included | USB Type-C |
AC adapter included | Y |
Quick start guide | Y |
Harmonized System (HS) code | 84733020 |
