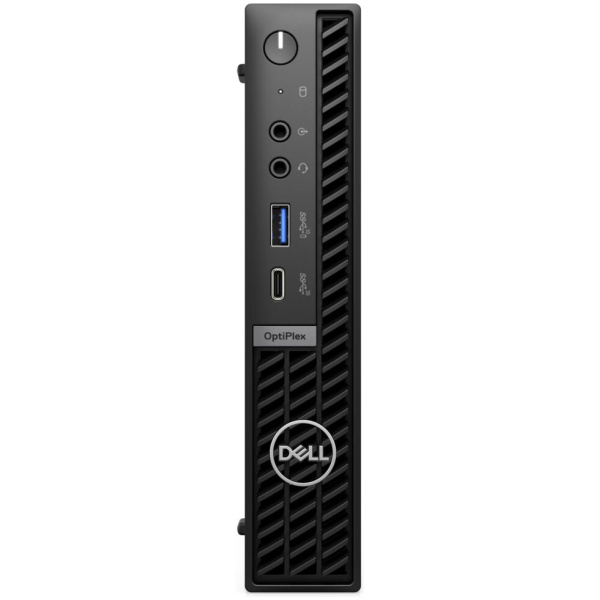

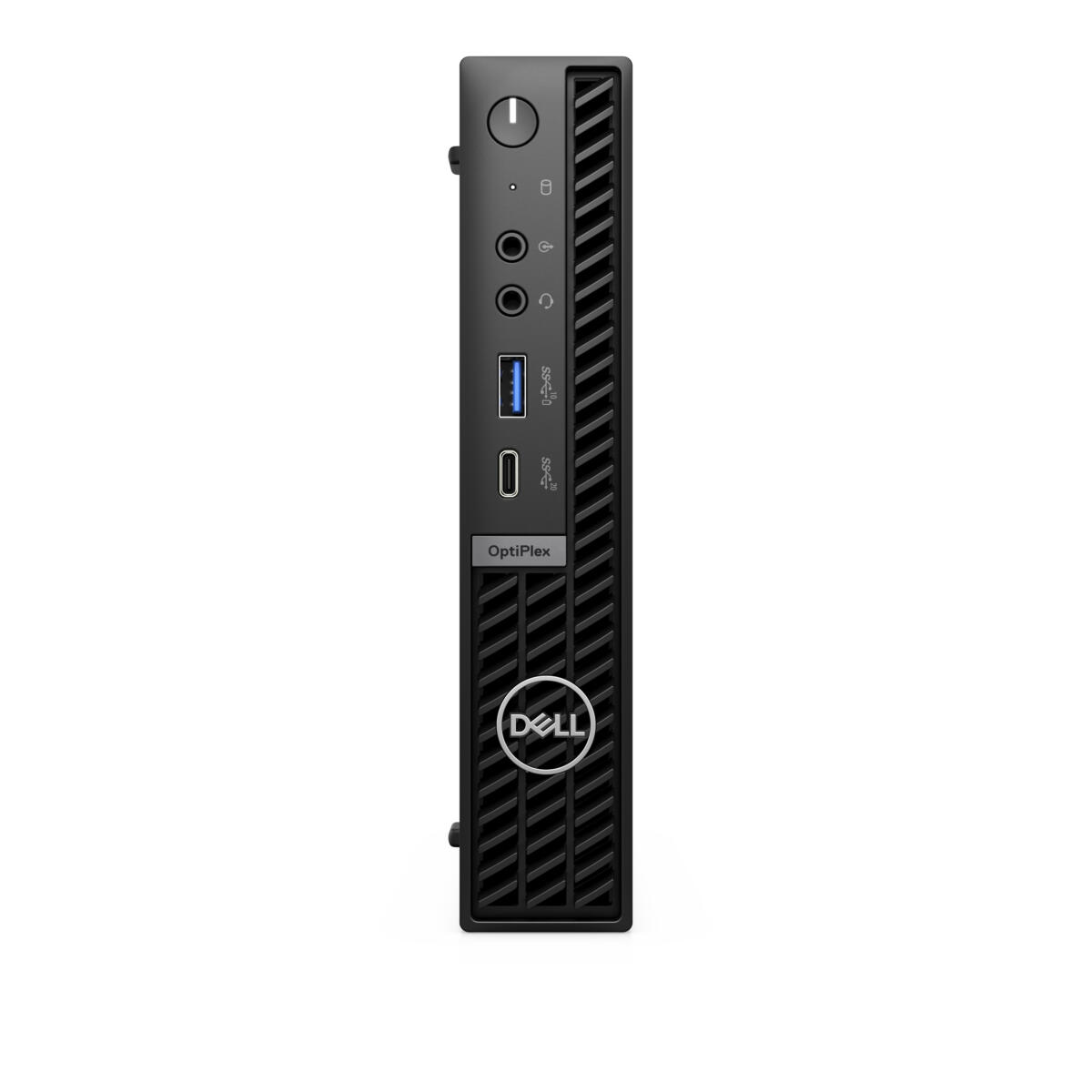

Dell OptiPlex MICRO Plus 7020 Core™ i5-14500 256GB SSD 16GB WIN11 Pro Keyboard Mouse BLACK
Dell OptiPlex MICRO Plus 7020 Core™ i5-14500 256GB SSD 16GB WIN11 Pro Keyboard Mouse BLACK - Image 2
Dell OptiPlex MICRO Plus 7020 Core™ i5-14500 256GB SSD 16GB WIN11 Pro Keyboard Mouse BLACK - Image 3
Dell OptiPlex MICRO Plus 7020 Core™ i5-14500 256GB SSD 16GB WIN11 Pro Keyboard Mouse BLACK - Image 4
Dell OptiPlex MICRO Plus 7020 Core™ i5-14500 256GB SSD 16GB WIN11 Pro Keyboard Mouse BLACK - Image 5
Dell OptiPlex MICRO Plus 7020 Core™ i5-14500 256GB SSD 16GB WIN11 Pro Keyboard Mouse BLACK - Image 6
Dell OptiPlex MICRO Plus 7020 Core™ i5-14500 256GB SSD 16GB WIN11 Pro Keyboard Mouse BLACK - Image 7

Dell OptiPlex MICRO Plus 7020 Core™ i5-14500 256GB SSD 16GB WIN11 Pro Keyboard Mouse BLACK

$858$1030

CyberMonday SALE!
Extra 5% off with coupon:
NEW2024

50 in stock

Eligible for an additional 5% discount!
With coupon code: NEW2025
About this product
SKU# H7C21 | Item# 532957
Warranty: 1 Year Manufacturer Warranty
Condition: New Factory Sealed
Packaging: Retail Box
Minimum order quantity (MOQ): 1
Images and specifications are for reference only
Usually ships within 2-4 business days
Special order item, not eligible for return/cancellation execpt for More info
SKU: H7C21 Category: Brand:

Additional information

High performance commercial desktop with DDR5 memory, 5 native USBs including 1 USB-C, and 3 native DisplayPorts

Processor familyIntel® Core™ i5
Processor manufacturerIntel
Processor modeli5-14500T
Processor generationIntel® Core™ i5 (14th gen)
Processor cores14
Processor threads20
Processor boost frequency4.8 GHz
Performance cores6
Efficient cores8
Performance-core Max Turbo Frequency4.8 GHz
Efficient-core Max Turbo Frequency3.4 GHz
Performance-core base frequency1.7 GHz
Efficient-core base frequency1.2 GHz
Processor cache24 MB
Processor cache typeSmart Cache
Number of processors installed1
Processor base power35 W
Maximum turbo power92 W
Internal memory16 GB
Maximum internal memory64 GB
Internal memory typeDDR5-SDRAM
Memory layout (slots x size)1 x 16 GB
Memory slots2x SO-DIMM
Non-ECCYes
Memory data transfer rate5600 MT/s
Total storage capacity256 GB
Optical drive typeNo
Storage mediaSSD
Number of storage drives installed1
Total SSDs capacity256 GB
Number of SSDs installed1
SSD capacity256 GB
SSD interfacePCI Express
NVMeYes
SSD form factorM.2
SSD performance class35
Discrete graphics cardNo
On-board graphics cardYes
Discrete graphics card modelNot available
On-board graphics card modelIntel UHD Graphics 770
On-board GPU manufacturerIntel
On-board graphics card familyIntel® UHD Graphics
Ethernet LANYes
Wi-FiYes
Ethernet LAN data rates10,100,1000 Mbit/s
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller manufacturerIntel
WLAN controller modelIntel Wi-Fi 6E AX211
Antenna type2x2
BluetoothYes
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Thunderbolt 3 ports quantity0
USB 3.2 Gen 2x2 Type-C ports quantity1
PowerShareYes
Number of USB ports with PowerShare support1
DisplayPorts quantity3
DisplayPort version1.4a
Ethernet LAN (RJ-45) ports1
Microphone inYes
Combo headphone/mic portYes
DC-in jackYes
Chassis typeMFF
Product colorBlack
Placement supportedHorizontal/Vertical
Cable lock slotYes
Cable lock slot typeKensington
Product typeMini PC
Market positioningBusiness
Motherboard chipsetIntel Q670
Audio chipRealtek ALC3246
Built-in speaker(s)Yes
Number of speakers1
Password protectionYes
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Operating system installedWindows 11 Pro
Operating system architecture64-bit
Power supply180 W
Power supply input voltage100 - 240 V
Power supply input frequency50/60 Hz
Operating temperature (T-T)10 - 35 °C
Storage temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)5 - 95%
Operating altitude-598.4 - 120000" (-15.2 - 3048 m)
Non-operating altitude-598.4 - 420000" (-15.2 - 10668 m)
Operating vibration0.26 G
Non-operating vibration1.37 G
Operating shock40 G
Non-operating shock105 G
Sustainability certificatesTCO, ENERGY STAR, EPEAT Climate +
Doesn't containPVC/BFR
Width1.42" (36 mm)
Depth7.01" (178 mm)
Height7.17" (182 mm)
Weight2.98 lbs (1.35 kg)
Display includedNo
