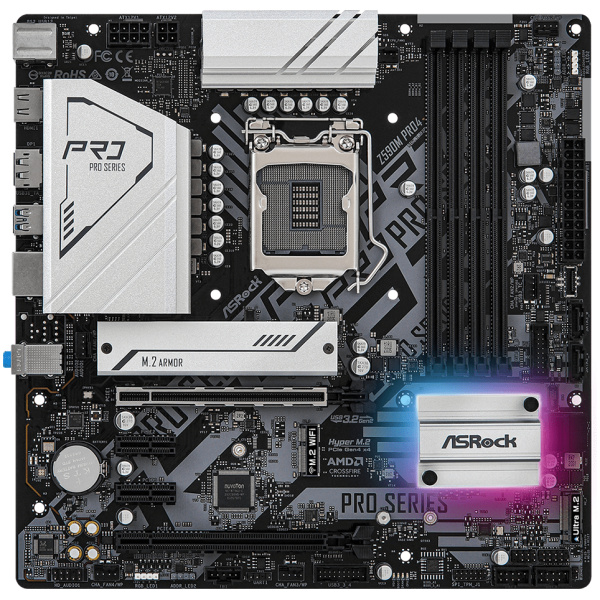

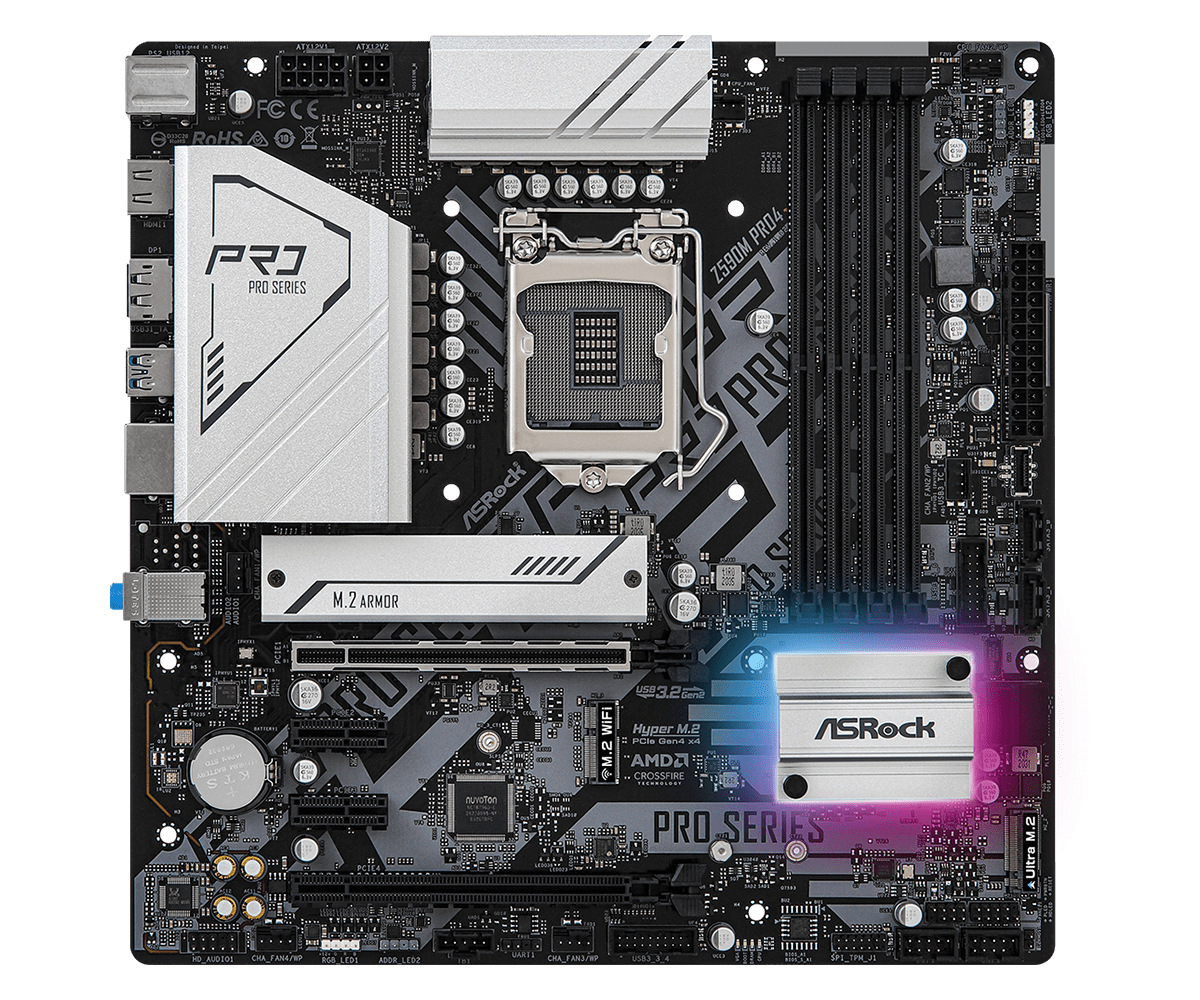

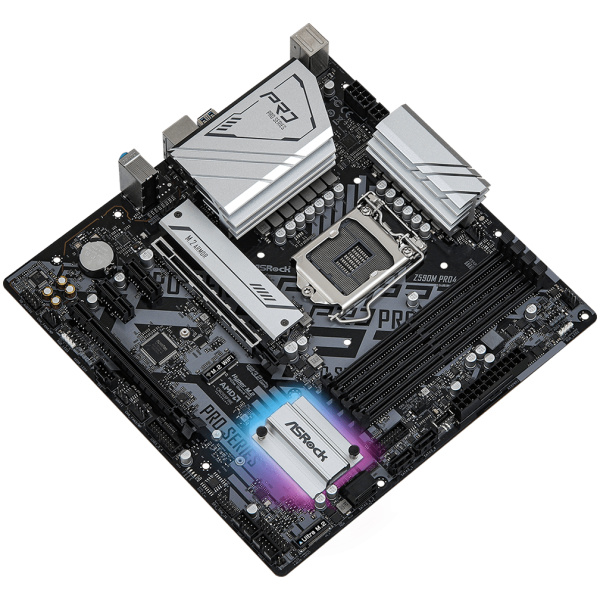

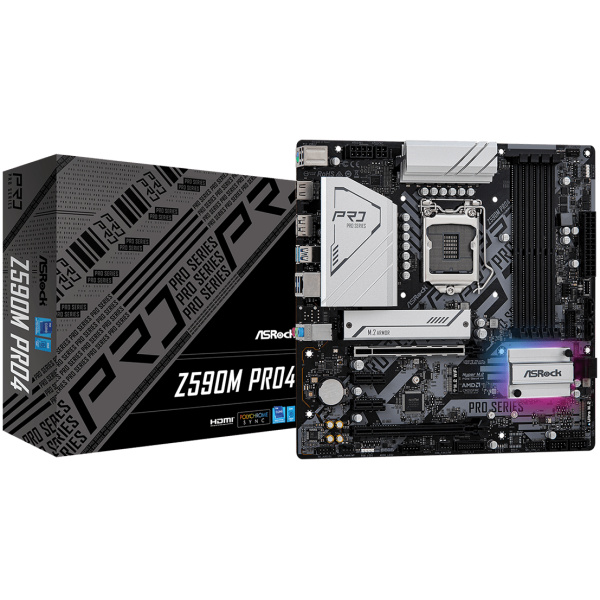

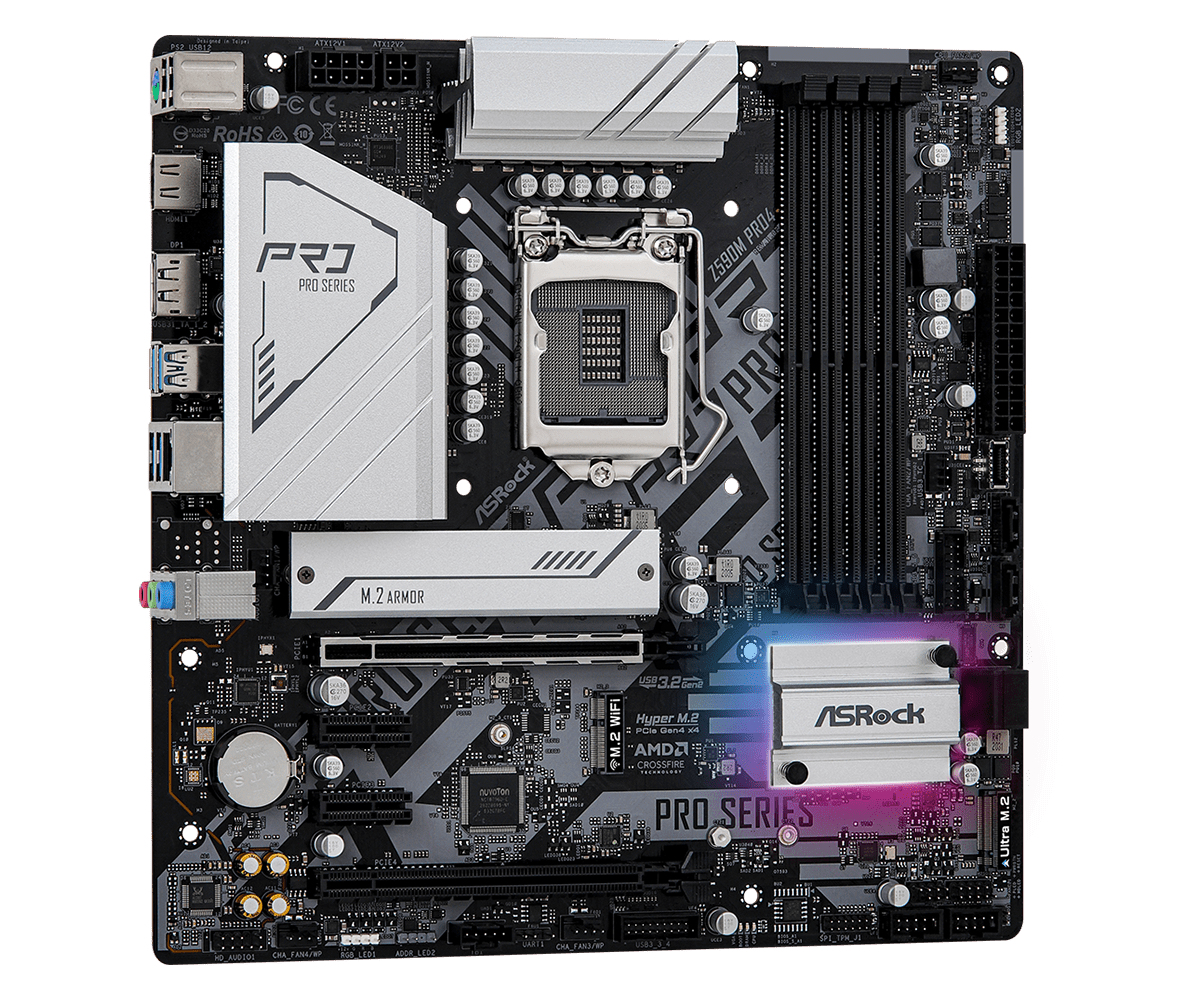

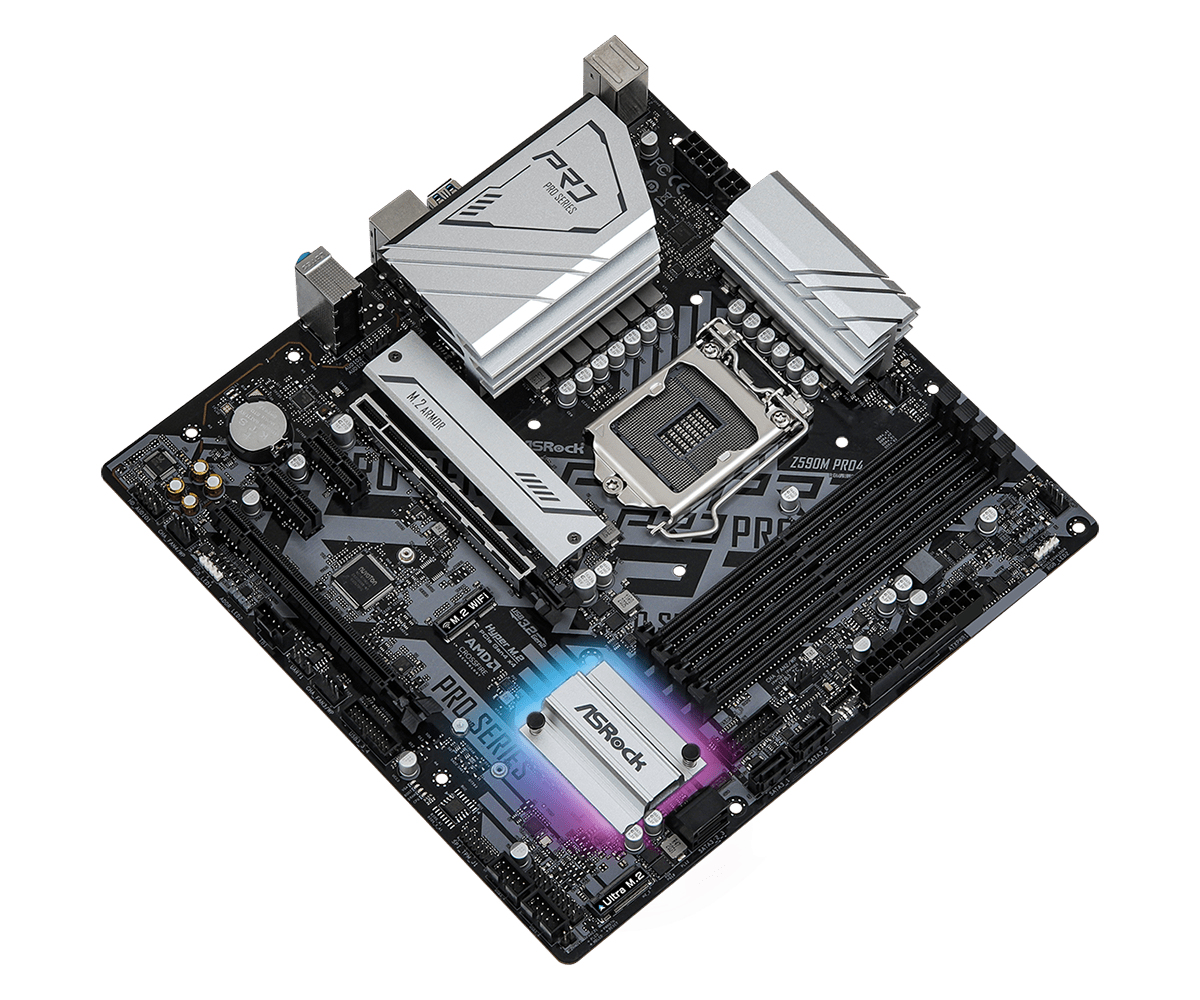

ASRock Z590M PRO4 FCLGA1200 Micro ATX Motherboard : 4 x DDR4 Slots, 3 x PCIe x1 Slots, 3 x PCIe x16 Slots, 2 x M.2 Slots, 6 x SATA III Slots 7.1-Channel Audio

$118

Out of stock

Don't miss our Special Coupons:
BFTG2110 - $10 (Order above $250)
BFTG2120 - $20 (Order above $600)
BFTG2130 - $30 (Order above $800)
BFTG2140 - $40 (Order above $999)
Offer ends in
About this product
SKU# Z590M PRO4 | Item# 214465
Warranty: 3 Year Warranty
Condition: New Factory Sealed
Packaging: Retail Box
Minimum order quantity (MOQ): 1
We are not responsible for any typographical and/or photographic errors
Usually ships within 7-10 business days
Special order item, not eligible for return/cancellation. More info
SKU: Z590M PRO4 Category:

Additional information

A good-looking and powerful Motherboard

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

PCIe 4.0 High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

6 Layer PCB
The 6 Layer PCB comes with 3 sets of copper inner layers, providing stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it’s able to support the latest DDR4 memory modules with most extreme memory performance!

Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

2 x USB3.2 Gen2
Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen2 technology advances the data transfer rate up to 10Gb/s. ASRock provides 2 x USB 3.2 Gen2 ports onboard allows you to have a stunning data transfer experience.

RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Processor manufacturerIntel
Processor socketLGA 1200
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Maximum number of SMP processors1
Supported memory typesDDR4-SDRAM
Number of memory slots4
Maximum internal memory128 GB
Memory slots typeDIMM
Non-ECCY
Supported memory clock speeds4800 MHz
Unbuffered memoryY
Supported storage drive interfacesM.2,SATA III
Supported storage drive typesHDD & SSD
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
Front panel audio connectorY
ATX Power connector (24-pin)Y
CPU fan connectorY
EPS power connector (8-pin)Y
TPM connectorY
Thunderbolt headers1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
PS/2 ports quantity1
DisplayPorts quantity1
Wi-FiN
Ethernet LANY
Ethernet interface typeGigabit Ethernet
Wake-on-LAN readyY
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z590
Audio output channels7.1 channels
PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
BIOS typeUEFI AMI
Width9.61" (244 mm)
Depth9.61" (244 mm)
Cables includedSATA
Drivers includedY
