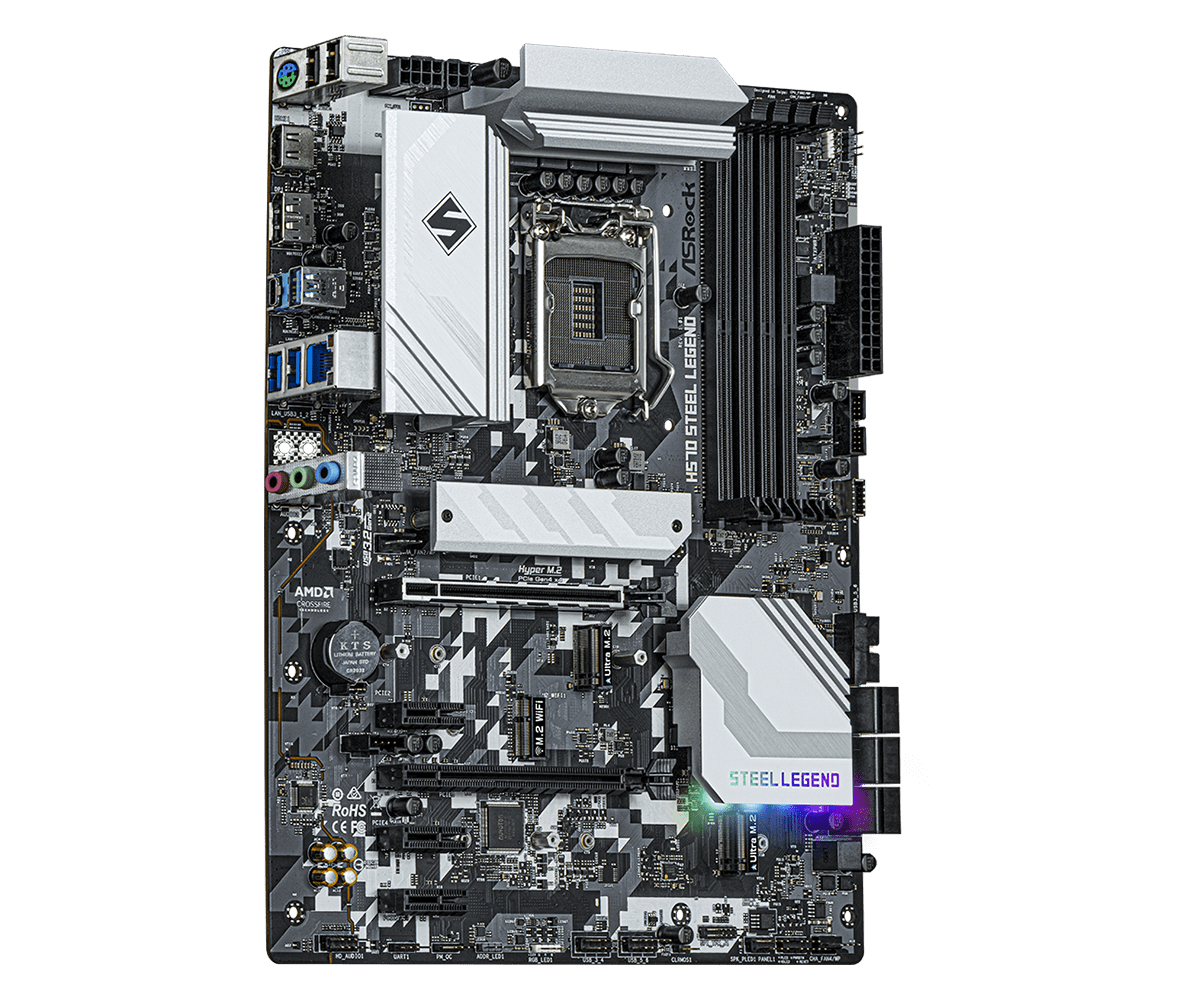

ASRock H570 STEEL LEGEND *[FCLGA1200]* ATX Motherboard : 1 x DDR4 Slot, 2 x PCIe 3.0 x16 Slots, 6 x SATA III Slots 7.1-Channel Audio

$187

SOLD OUT

Click for similar items

Extra 5% off with coupon:
BLACKFRIDAY
Ends in:
About this product
SKU# H570 STEEL LEGEND | Item# 152840
Warranty: 1 Year Warranty
Condition: New Factory Sealed
Packaging: Retail Box
Minimum order quantity (MOQ): 1
Images and specifications are for reference only
Usually ships within 7-10 business days
Special order item, not eligible for return/cancellation execpt for More info
SKU: H570 STEEL LEGEND Category:

Additional information

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Processor manufacturerIntel
Processor socketLGA 1200
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium®
Supported memory typesDDR4-SDRAM
Number of memory slots4
Maximum internal memory128 GB
Memory slots typeDIMM
Memory channelsDual-channel
Non-ECCY
Supported memory clock speeds4666,4800 MHz
Unbuffered memoryY
Supported storage drive interfacesM.2,SATA III
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors6
Front panel audio connectorY
ATX Power connector (24-pin)Y
CPU fan connectorY
EPS power connector (8-pin)Y
TPM connectorY
Thunderbolt headers1
RGB LED pin headerY

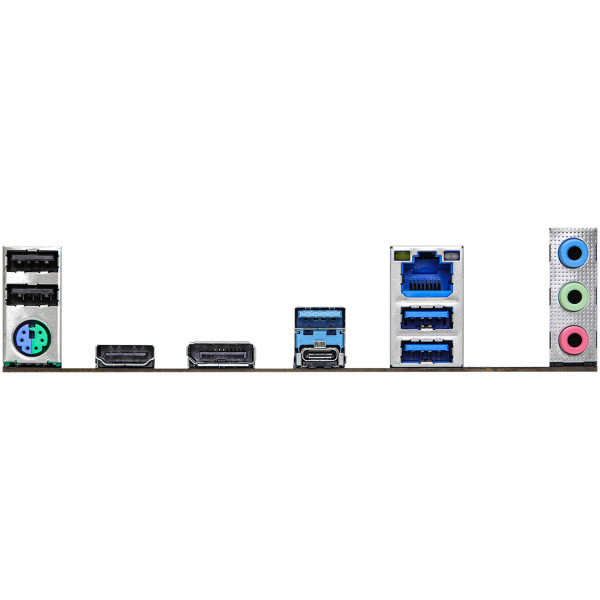

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
PS/2 ports quantity1
DisplayPorts quantity1
DisplayPort version1.4
Wi-FiN
Ethernet LANY
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerDragon RTL8125BG
Wake-on-LAN readyY
Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel H570
Audio output channels7.1 channels
PCI Express x1 (Gen 3.x) slots3
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots1
BIOS typeUEFI AMI
ACPI version6.0
System Management BIOS (SMBIOS) version2.7
Width12" (305 mm)
Depth9.61" (244 mm)
Cables includedSATA
Drivers includedY
