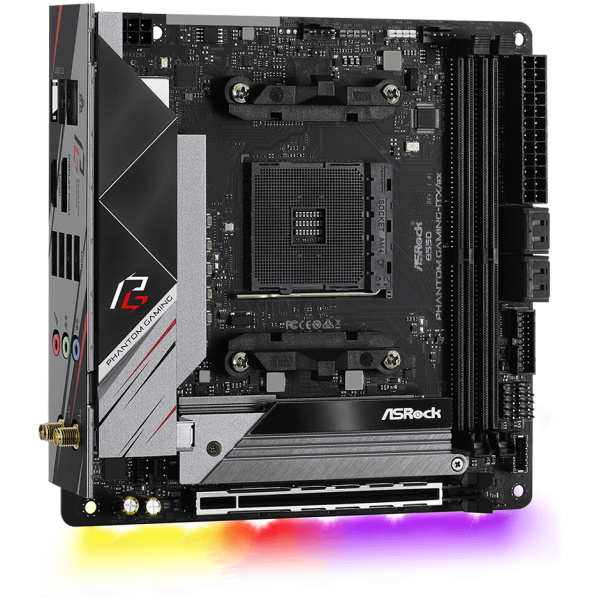

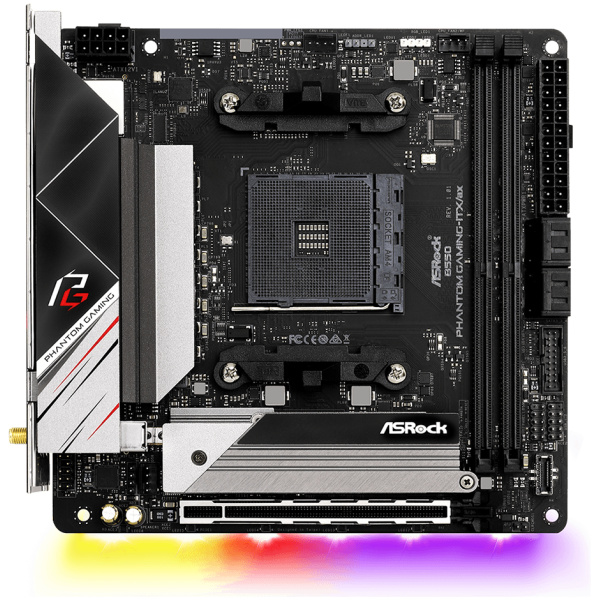

ASRock B550 PHAN GAM ITX/AX WIFI 754 Mini ITX Motherboard : 1 x DDR4 Slot, 2 x PCIe 3.0 x16 Slots, 8 x SATA III Slots 7.1-Channel Audio

$198

SOLD OUTClick for similar items

Don't miss our Special Coupons:
BFTG2110 - $10 (Order above $250)
BFTG2120 - $20 (Order above $600)
BFTG2130 - $30 (Order above $800)
BFTG2140 - $40 (Order above $999)
Offer ends in
About this product
SKU# B550 PHAN GAM ITX/AX | Item# 214372
Warranty: 1 Year Warranty
Condition: New Factory Sealed
Packaging: Retail Box
Minimum order quantity (MOQ): 1
Images and specifications are for reference only
Usually ships within 7-10 business days
Special order item, not eligible for return/cancellation execpt for More info
SKU: B550 PHAN GAM ITX/AX Category:

Additional information

Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!

TAKE THE LEAD
Game your way with speed and ease thanks to ultra-fast hardware

Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

8LAYER & 2OZ COPPER PCB
The 8 Layer PCB comes with 4 sets of 2 ounce copper inner layers, providing stable signal traces and power shapes and delivering lower temperature and higher energy efficiency for overclocking! Thus, it’s able to support the latest DDR4 memory modules with most extreme memory performance!

RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Wi-Fi 6 802.11ax
Welcome to the new Wi-Fi standard! ASRock’s motherboard equipped with next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

Intel® 2.5G LAN
The 2.5G Ethernet configuration were introduced to support higher bandwidth on widely deployed CAT5e and CAT6 cabling in enterprise and metro area networks. The industry’s leading Intel® LAN always provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users

Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

PCIe 4.0 High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

AMD SMART ACCESS MEMORY
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

Front USB 3.2 Gen2 Type-C

Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Ryzen™ 3, AMD Ryzen™ 5
Supported memory typesDDR4-SDRAM
Number of memory slots2
Maximum internal memory64 GB
Memory slots typeDIMM
Memory channelsDual-channel
ECCY
Non-ECCY
Supported memory clock speeds2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4600,4666,4733,4800,4866,4933,5000 MHz
Unbuffered memoryY
Supported storage drive interfacesM.2,SATA III
Supported storage drive typesHDD & SSD
Parallel processing technology supportNot supported
USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Front panel audio connectorY
ATX Power connector (24-pin)Y
CPU fan connectorY
EPS power connector (8-pin)Y
RGB LED pin headerY
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
DisplayPorts quantity1
DisplayPort version1.4
Headphone outputs1
Microphone inY
Wi-FiY
Ethernet LANY
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerIntel I225-V
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standards802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 6 (802.11ax)
BluetoothY
Bluetooth version5.2
Component forPC
Motherboard form factormini ITX
Motherboard chipset familyAMD
Motherboard chipsetAMD B550
Audio output channels7.1 channels
Windows operating systems supportedWindows 10 x64,Windows 11 x64
PCI Express x16 (Gen 4.x) slots1
BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.1
System Management BIOS (SMBIOS) version2.3
Width6.69" (170 mm)
Depth6.69" (170 mm)
Cables includedSATA
