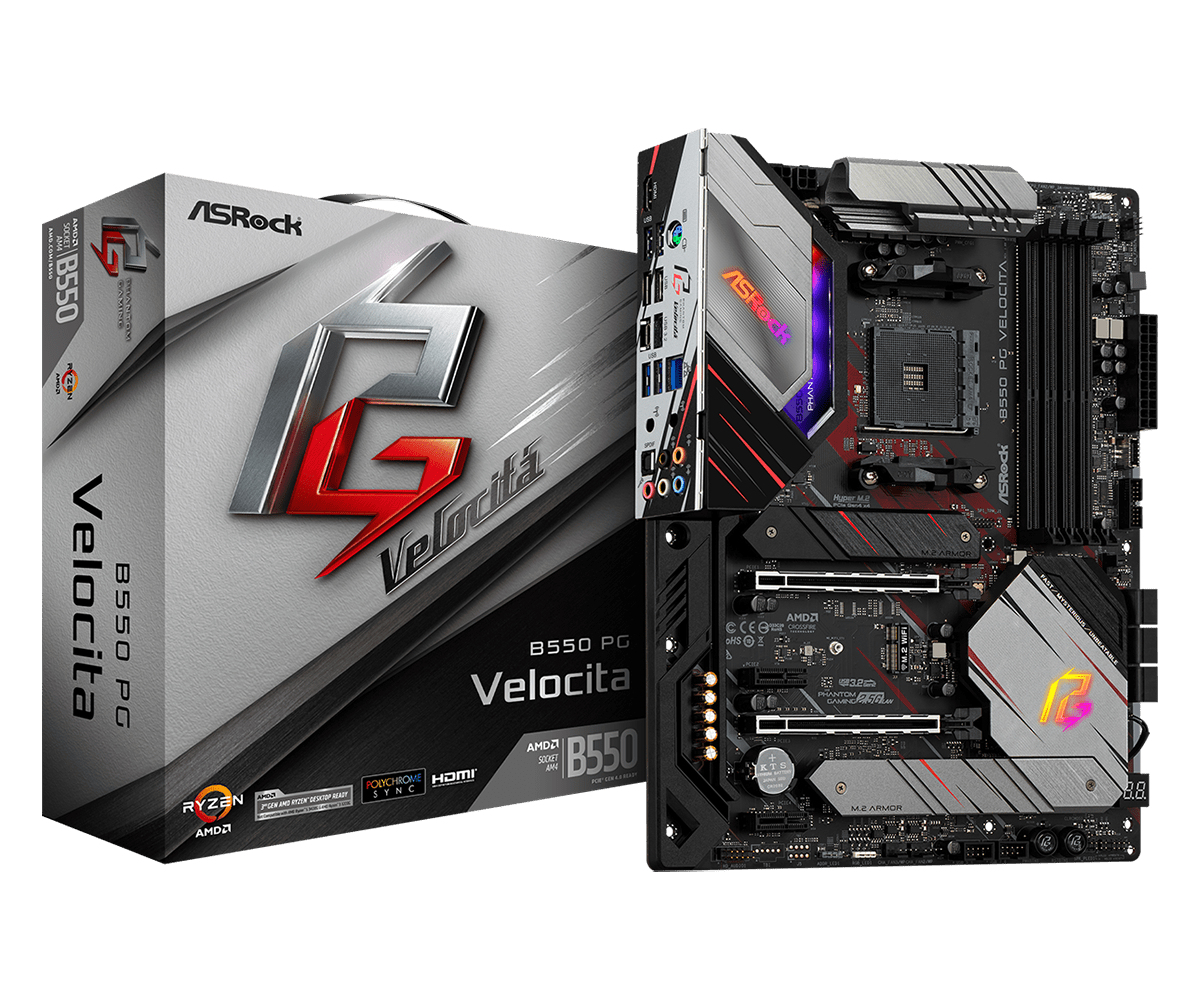

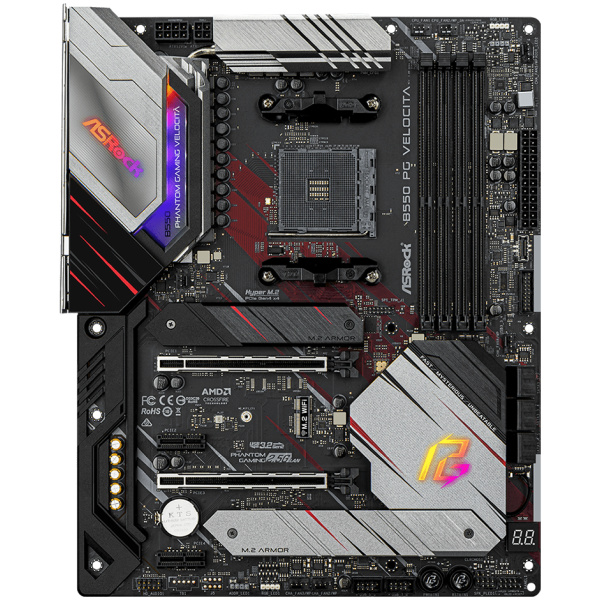

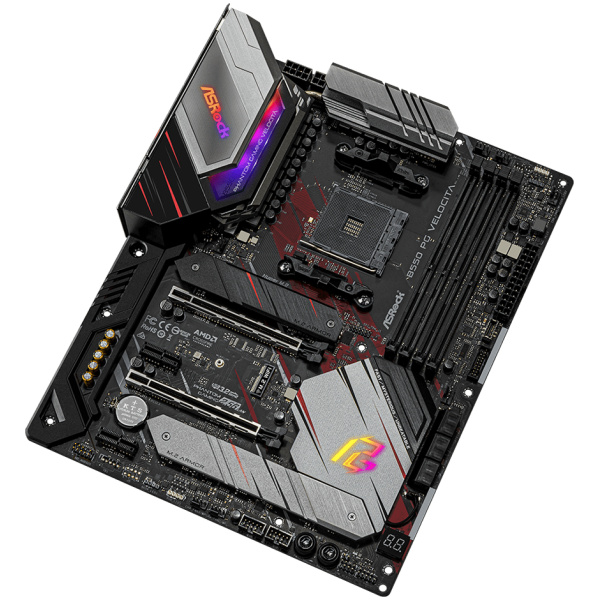

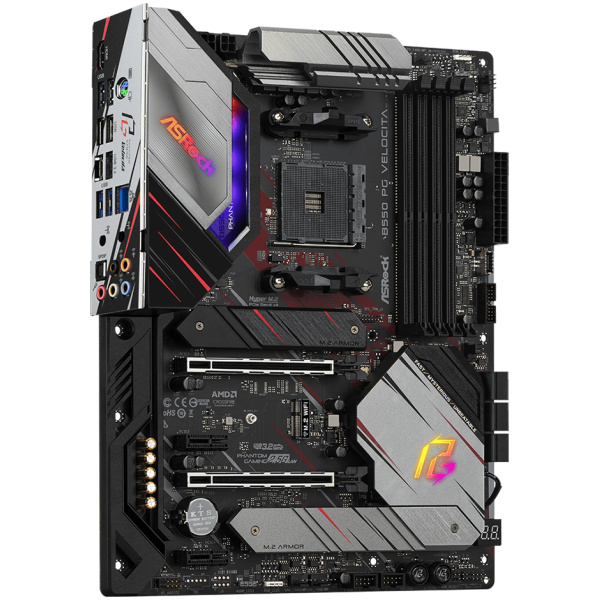

ASRock B550 PG VELOCITA *[FCLGA1200]* ATX Motherboard : 1 x DDR4 Slot, 2 x PCIe 3.0 x16 Slots, 6 x SATA III Slots 7.1-Channel Audio

$175

SOLD OUT

We still have a selection of similar available alternatives, click to check them out

About this product
SKU# B550 PG VELOCITA | Item# 153242
Warranty: 1 Year Warranty
Condition: New Factory Sealed
Packaging: Retail Box
Minimum order quantity (MOQ): 1
Images and specifications are for reference only
Usually ships within 7-10 business days
Special order item, not eligible for return/cancellation execpt for More info
SKU: B550 PG VELOCITA Category:

Additional information

PG Velocita is a brand new high end product line under the Phantom Gaming family, the PG Velocita motherboard series packed full with uncompromised performance as well as relentless appearance. “Velocità” is Italian for “Velocity”, destined to give a fast and unbeatable gaming experience to the gamers!

Unbeatable Heatsink Armor
Forged with aluminum alloy heatsinnk top cover that effectively improves heat dissipation. Underneath its solid strong cover lie two gaming required M.2 Key M sockets for high speed SSDs.

Dual M.2 Sockets for SSD
Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.

Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Hi-Density Power Connector
Reduces 23% power loss and decreases the connector’s temperature by 22 degrees Celsius.
8+4 12V Power Connectors
24-pin ATX Power Connector

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it’s able to support the latest DDR4 memory modules with most extreme memory performance!

RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

Phantom Gaming 2.5 Gb/s LAN
The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

Flexible Integrated I/O Shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

Gold Audio Jacks
Everything will wear off in time, but gold looks better! Gold audio jack provides stable sound transmission!

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9
Maximum number of SMP processors1
Supported memory typesDDR4-SDRAM
Number of memory slots4
Maximum internal memory128 GB
Memory slots typeDIMM
Memory channelsDual-channel
ECCY
Non-ECCY
Supported memory clock speeds2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4600,4666,4733 MHz
Unbuffered memoryY
Supported storage drive interfacesM.2,SATA III
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors6
ATX Power connector (24-pin)Y
CPU fan connectorY
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)Y

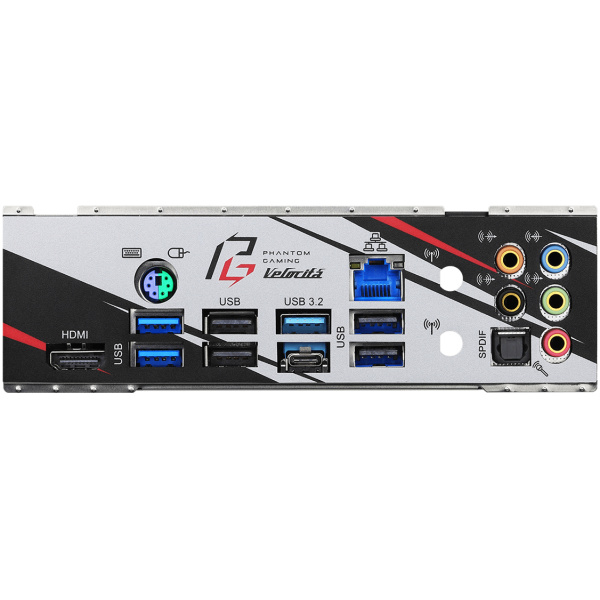

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
PS/2 ports quantity1
S/PDIF out portY
Wi-FiN
Ethernet LANY
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerDragon RTL8125BG
Wake-on-LAN readyY
Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B550
Audio output channels7.1 channels
Audio chipRealtek ALC1220
BIOS typeUEFI AMI
Width12" (305 mm)
Depth9.61" (244 mm)
Drivers includedY
