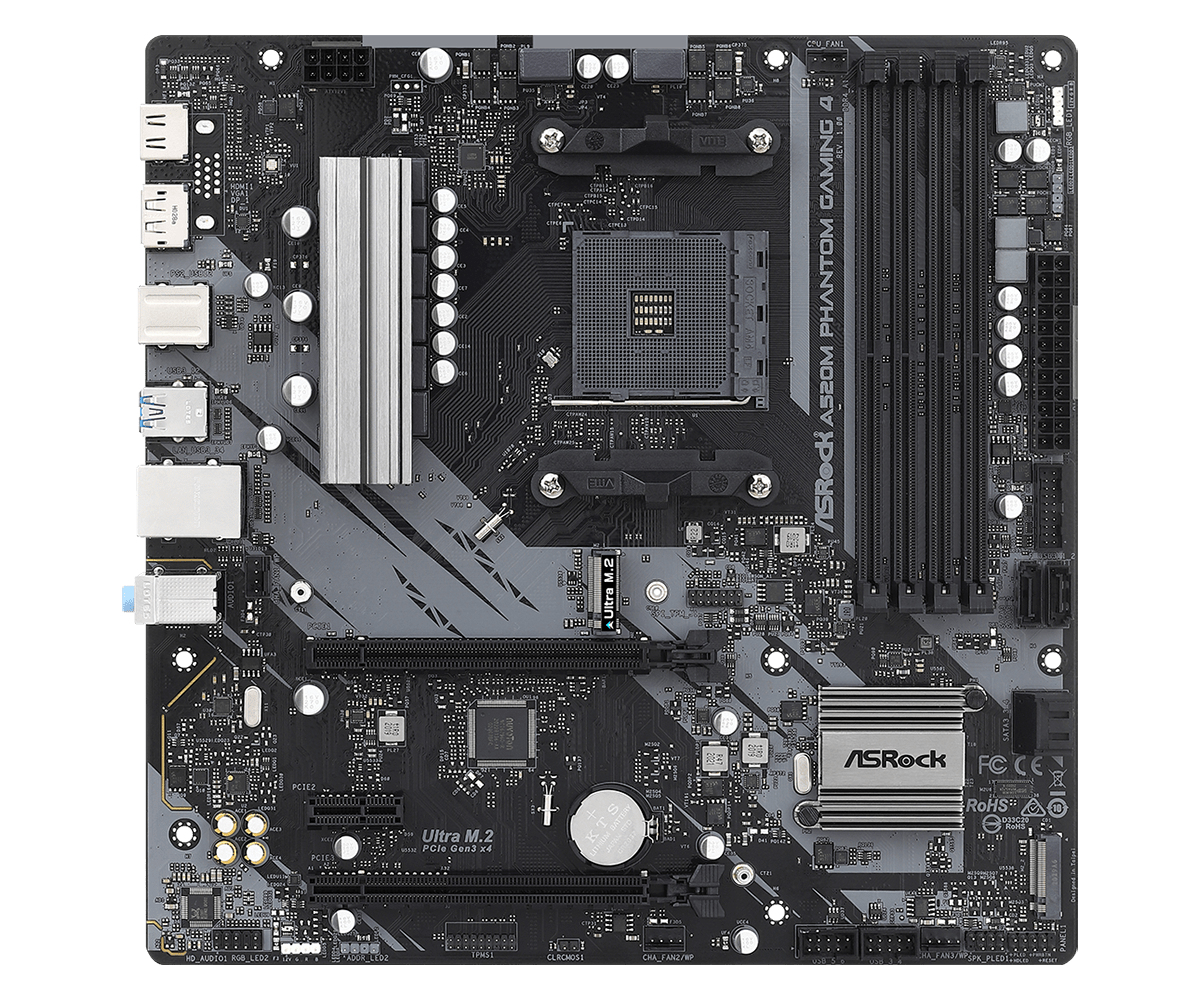

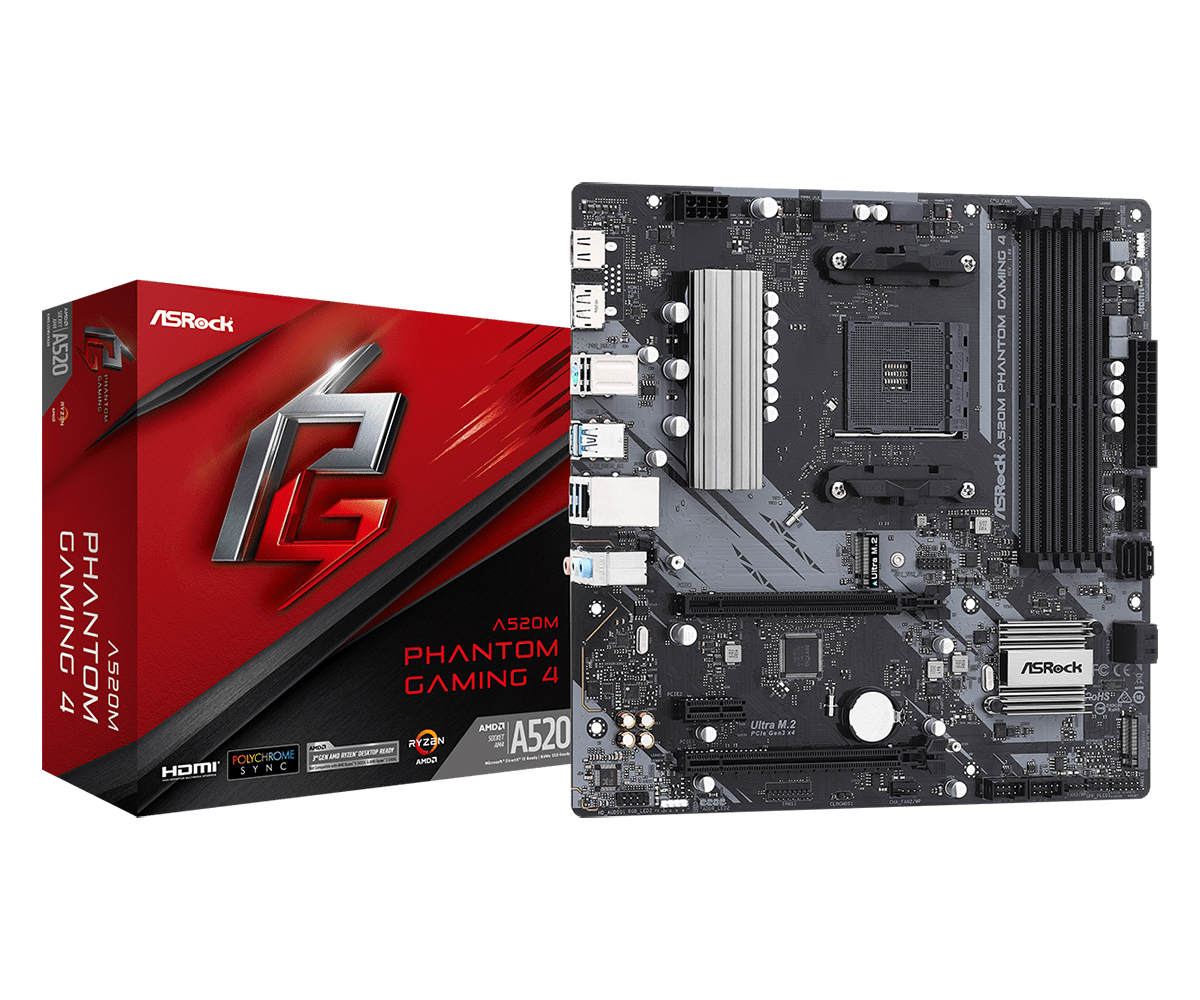

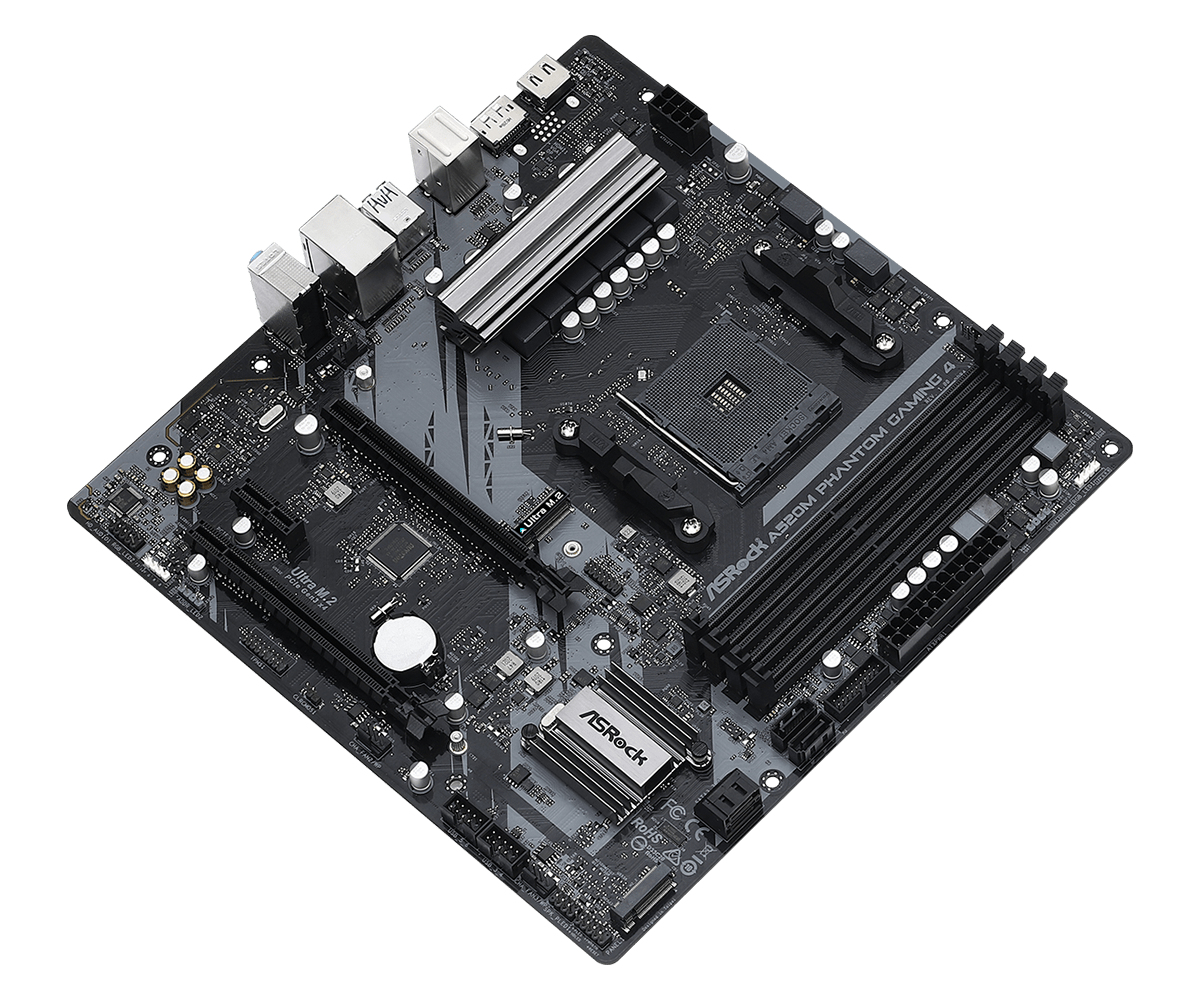

ASRock A520M PHANTOM GAM 4 *[AM4]* Micro ATX Motherboard : 1 x DDR4 Slot, 1 x PCIe 2.0 x16 Slot, 2 x PCIe 3.0 x16 Slots, 4 x SATA III Slots 7.1-Channel Audio

$113

SOLD OUT

Click for similar items

Extra 5% off with coupon:
BLACKFRIDAY
Ends in:
About this product
SKU# A520M PHANTOM GAM 4 | Item# 215529
Warranty: 3 Year Warranty
Condition: New Factory Sealed
Packaging: Retail Box
Minimum order quantity (MOQ): 1
Images and specifications are for reference only
Usually ships within 7-10 business days
Special order item, not eligible for return/cancellation execpt for More info
SKU: A520M PHANTOM GAM 4 Category:

Additional information

Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!

8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.

Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

AMD SMART ACCESS MEMORY
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

Dual M.2 For SSD
One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s. The other one supports PCIe Gen3 x2 & SATA3 M.2 modules.

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it’s able to support the latest DDR4 memory modules with most extreme memory performance!

RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Ryzen™ 3, AMD Ryzen™ 5
Maximum number of SMP processors1
Supported memory typesDDR4-SDRAM
Number of memory slots4
Maximum internal memory128 GB
Memory slots typeDIMM
Memory channelsDual-channel
ECCY
Non-ECCY
Supported memory clock speeds2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4733 MHz
Unbuffered memoryY
Supported storage drive interfacesM.2,PCI Express 3.0,SATA
Supported storage drive typesHDD & SSD
On-board graphics cardY
Graphics card familyAMD
Graphics cardRadeon Vega
HDCPY
DirectX version12.0
Number of SATA III connectors4
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
PS/2 ports quantity1
DisplayPorts quantity1
DisplayPort version1.4
Microphone inY
Ethernet LANY
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A520
Audio output channels7.1 channels
Audio chipRealtek ALC887 / Realtek ALC897
Windows operating systems supportedWindows 10
CertificationFCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots2
BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.1
System Management BIOS (SMBIOS) version2.3
Width9.61" (244 mm)
Depth9.61" (244 mm)
